(675E) - TRACTOR LOADER BACKHOE (1/96-)
/

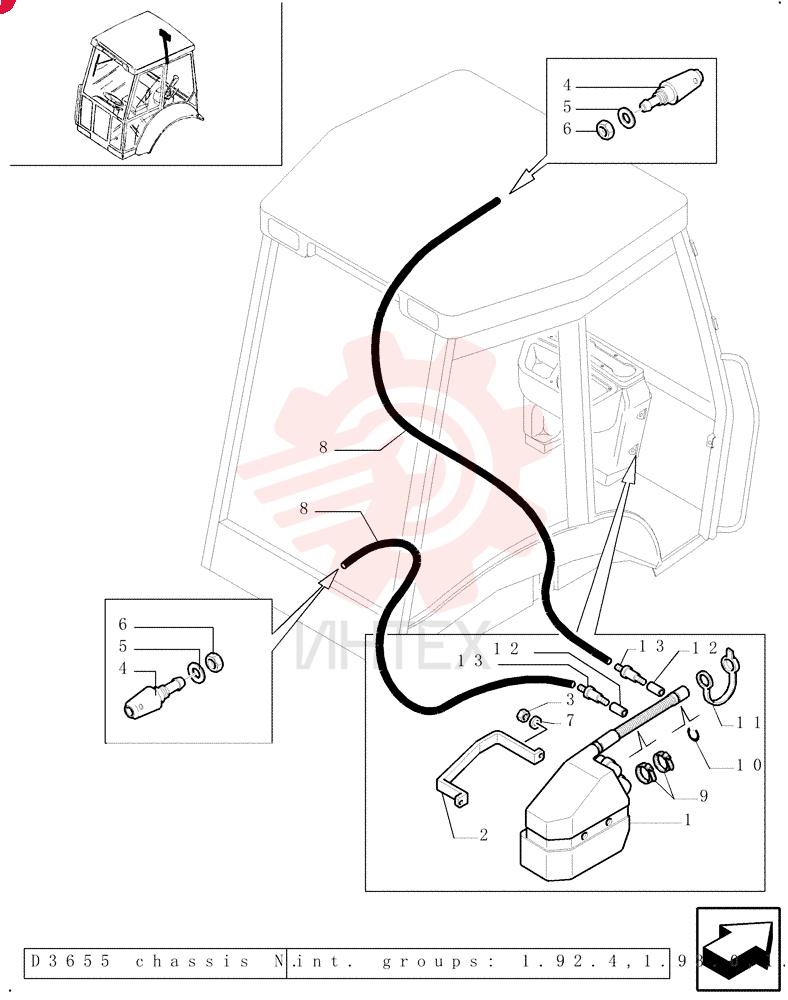

RESERVOIR, WINDSHIEL 85805444

RESERVOIR, WINDSHIEL 85805444

RESERVOIR, WINDSHIEL 85805444

1 85805444

  • 85805444 - RESERVOIR
  • WINDSHIEL

2 85807815

  • 85807815 - STRAP

3 16104121

  • 16104121 - NUT
  • M8 x 1.25
  • Cl 10

4 85802398

  • 85802398 - NOZZLE

5 12646704

  • 12646704 - WASHER
  • 8.15mm ID x 20mm OD x 2mm Thk

6 16102411

  • 16102411 - THIN NUT
  • Thin
  • M8 x 1
  • Cl 04

7 12625201

  • 12625201 - WASHER
  • 8.15mm ID x 20mm OD x 1mm Thk

8 85805446

  • 85805446 - FLEXIBLE HOSE
  • 4.00 mm ID x 3000.00 mm

9 85811993

  • 85811993 - HOSE CLAMP

10 14463580

  • 14463580 - O-RING
  • 0.139" Thk x 1.17" ID
  • -217
  • Cl 5
  • 75 Duro

11 5175736

  • 5175736 - CAP
  • 36.5mm ID

12 19054783

  • 19054783 - FLEXIBLE HOSE

13 5136113

  • 5136113 - VALVE
