New Holland Construction
/
(675E) - TRACTOR LOADER BACKHOE (1/96-)
/

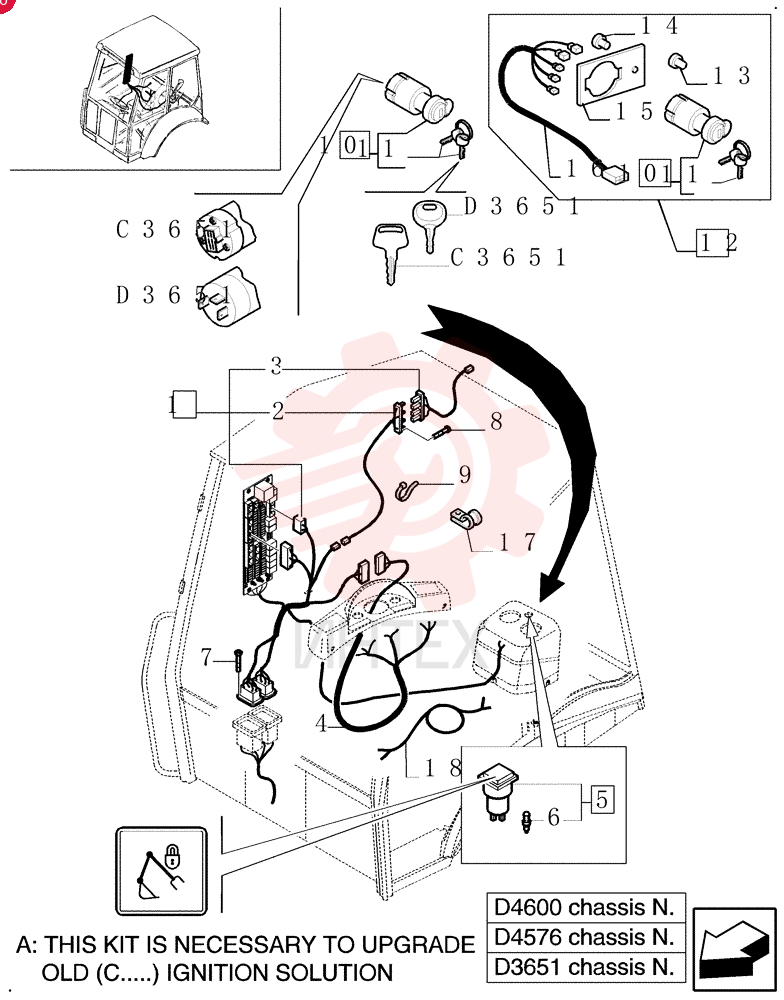

WIRE HARNESS 85804922

WIRE HARNESS 85804922

WIRE HARNESS 85804922

1 85804922

  • 85804922 - WIRE HARNESS

2 85805406

  • 85805406 - WIRE HARNESS

3 85815524

  • 85815524 - WIRE HARNESS

4 85802302

  • 85802302 - WIRE CONNECTOR

5 85802303

  • 85802303 - WIRE CONNECTOR

6 85804097

  • 85804097 - WIRE HARNESS

7 85817062

  • 85817062 - WIRE HARNESS

8 85802160

  • 85802160 - WARNING LIGHT

9 14143990

  • 14143990 - BULB
  • 12V
  • 3W

10 13272214

  • 13272214 - SCREW
  • Pozidriv Pan Hd
  • M4 x 16mm
  • Cl 5.8
  • Full Thd

11 15641307

  • 15641307 - SCREW
  • Pozidriv Pan Hd
  • M2.9 x 16mm

12 5143428

  • 5143428 - CABLE TIE
  • 116mm L

13 85805383

  • 85805383 - CABLE TIE

14 85801522

  • 85801522 - IGNITION SWITCH

15 85804674

  • 85804674 - IGNITION SWITCH
  • 10 Pins

16 71451203

  • 71451203 - IGNITION KEY

17 85804675

  • 85804675 - IGNITION KEY

18 85807866

  • 85807866 - CONVERSION KIT

19 784122

  • 784122 - PLUG

20 10427200

  • 10427200 - RIVET
  • Flat Hd
  • M4 x 5

21 85805888

  • 85805888 - LOCKING PLATE

22 85807855

  • 85807855 - WIRE HARNESS

23 10450090

  • 10450090 - CLAMP
  • 8mm
  • Coat
  • 9mm Bolt Hole
  • P Type

24 85813319

  • 85813319 - WIRE HARNESS
