New Holland Construction
/
(B110) - NA BACKHOE LOADER (1/06-)
/

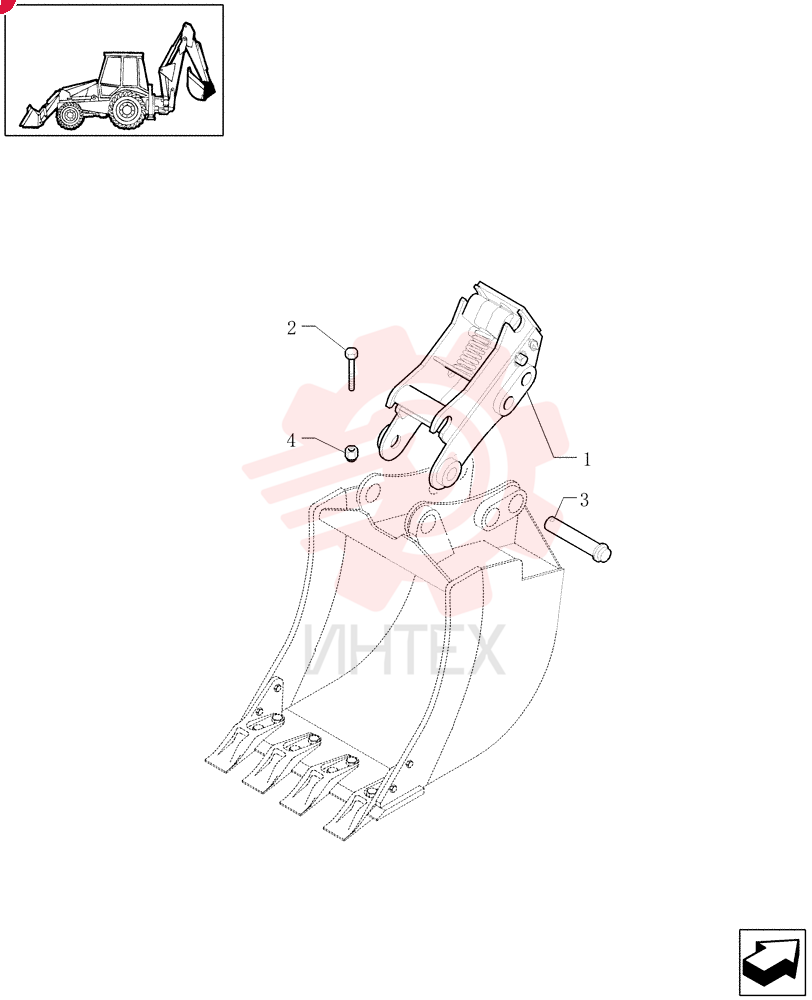

COUPLING

COUPLING

COUPLING

1 85801542

  • 85801542 - COUPLING

2 15972034

  • 15972034 - BOLT
  • Hex
  • M10 x 1.25 x 110mm
  • Cl 10.9

3 85803005

  • 85803005 - PIN
  • 45mm OD x 319mm L

4 12574511

  • 12574511 - LOCK NUT
  • M10 x 1.25
  • Cl 8
