(B110) - NA BACKHOE LOADER (1/06-)
/

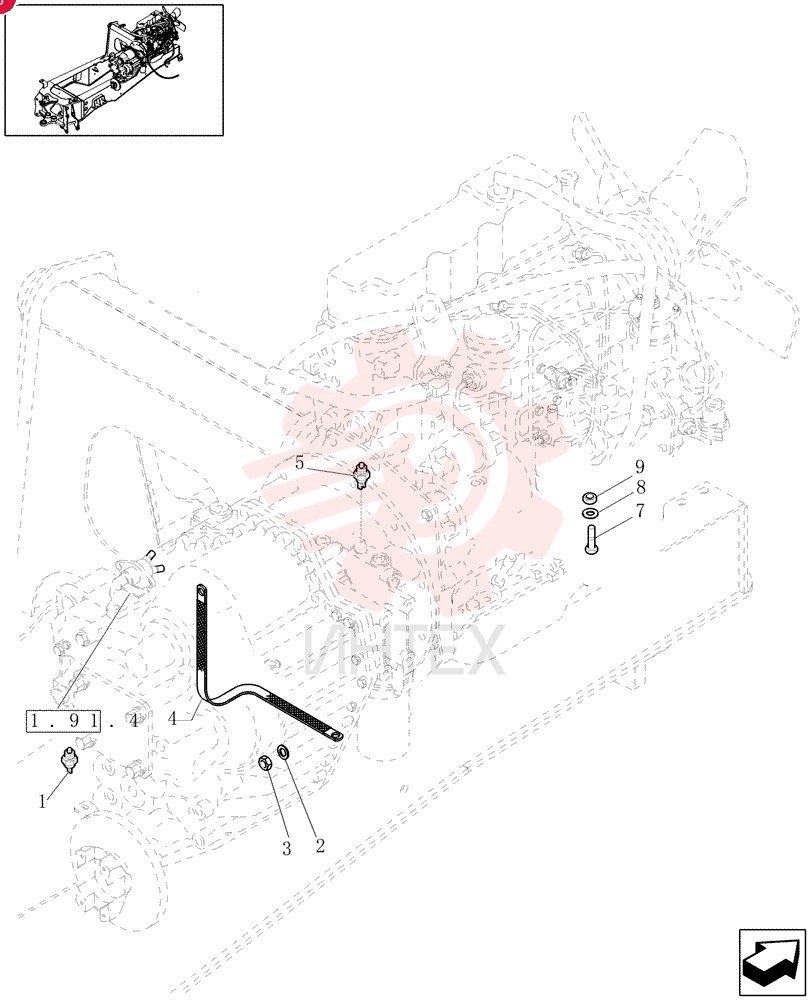

TEMPERATURE SENDER 85802381

TEMPERATURE SENDER 85802381

TEMPERATURE SENDER 85802381

1 85802381

  • 85802381 - TEMPERATURE SENDER

2 12647121

  • 12647121 - WASHER
  • 8.15mm ID x 20mm OD x 3mm Thk

3 16104111

  • 16104111 - NUT
  • Prevailing Torque
  • M8
  • 1.25 Pitch
  • 10.6mm High
  • Cl 08
  • ZND

4 87405018

  • 87405018 - GROUND STRAP

5 85818894

  • 85818894 - PRESSURE SWITCH

6 47049010

  • 47049010 - BOLT
  • Hvy Hex
  • M10 x 20mm
  • Cl 8.8

7 47048993

  • 47048993 - LOCK WASHER
  • 10mm ID

8 47049031

  • 47049031 - NUT
  • M10 x 1.5
  • Cl 10
