New Holland Construction
/
(B110) - NA BACKHOE LOADER (1/06-)
/

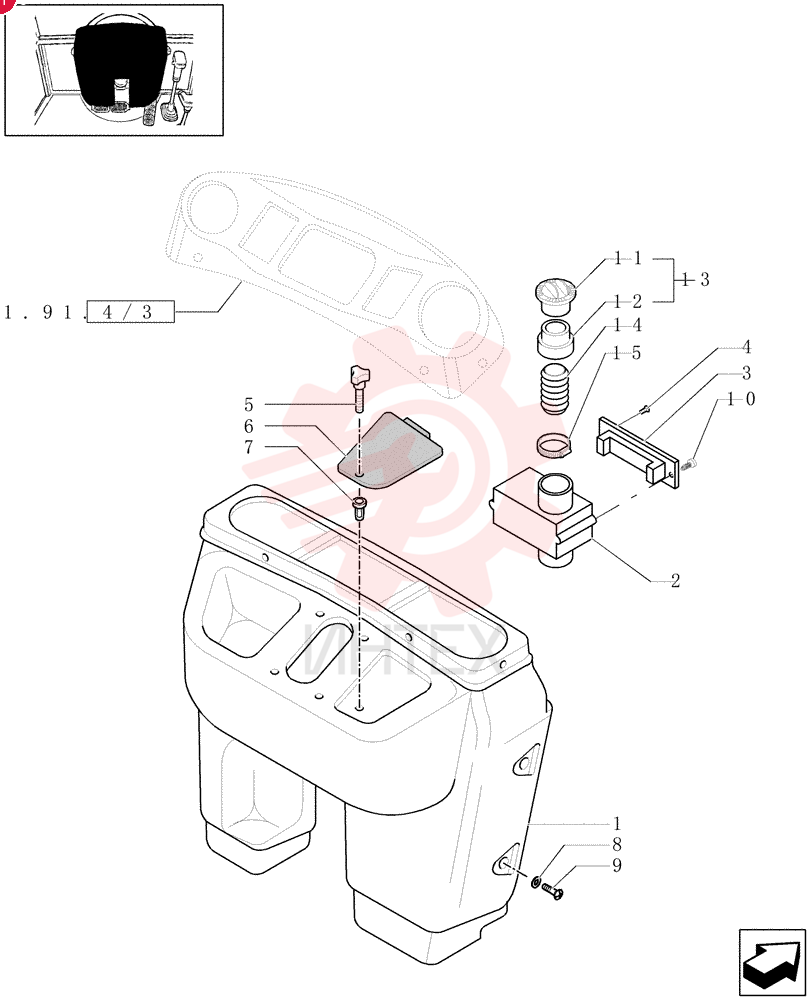

DASH PANEL

DASH PANEL

DASH PANEL

1 85819291

  • 85819291 - DASH PANEL

2 85819567

  • 85819567 - AIR DUCT

3 85819454

  • 85819454 - DIFFUSER

4 14440327

  • 14440327 - SCREW
  • Flat Csk Hd
  • M4 x 20mm
  • Cl 8.8

5 85805323

  • 85805323 - KNOB

6 85806089

  • 85806089 - COVER

7 85804750

  • 85804750 - THREADED BUSHING
  • M5 x 9.7mm OD x 20mm L

8 79089592

  • 79089592 - WASHER
  • 6mm ID x 24mm OD x 5mm Thk

9 79105220

  • 79105220 - SCREW
  • Phillips Drive
  • Oval HD
  • M6 x 20mm

10 14568887

  • 14568887 - FASTENER
  • M8 x 0.7 x 29mm

11 85819544

  • 85819544 - DIFFUSER

12 85819545

  • 85819545 - REDUCER

13 87358811

  • 87358811 - REDUCER

14 85819543

  • 85819543 - DIFFUSER

15 87358807

  • 87358807 - DIFFUSER

16 85819592

  • 85819592 - SLEEVE

17 13000990

  • 13000990 - COLLAR
  • 60mm - 80mm
  • Worm Gear
