(B110) - NA BACKHOE LOADER (1/06-)
/

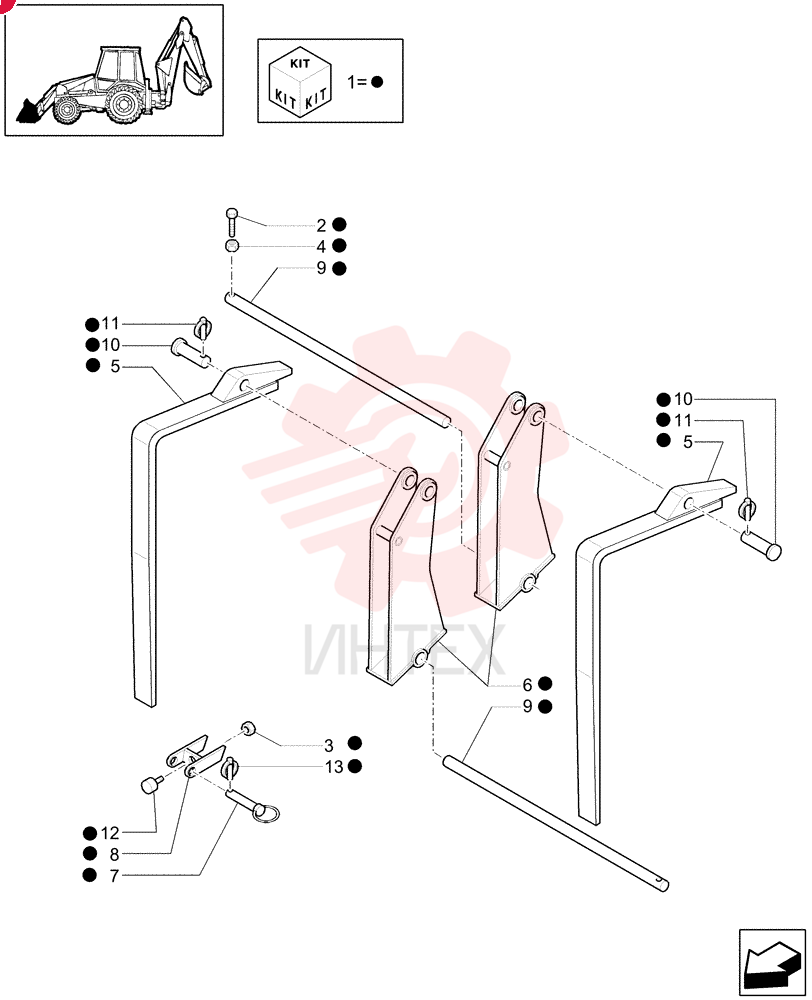

CONVERSION KIT

CONVERSION KIT

CONVERSION KIT

1 85820906

  • 85820906 - CONVERSION KIT

2 85820018

  • 85820018 - SCREW
  • M10 x 90mm

3 85820031

  • 85820031 - NUT
  • Hex
  • M8

4 85820035

  • 85820035 - LOCK NUT
  • Hex
  • M10 x 1.5mm

5 85820062

  • 85820062 - BUCKET FORK

6 85820063

  • 85820063 - SUPPORT

7 85820064

  • 85820064 - PIN

8 85820065

  • 85820065 - BRACKET

9 85820066

  • 85820066 - PIN
  • 49.74mm OD x 1035.05mm L

10 85820067

  • 85820067 - PIN

11 85825177

  • 85825177 - LOCK PIN
  • 8mm OD

12 85820069

  • 85820069 - PLUG

13 85820068

  • 85820068 - LOCK PIN
  • 11mm OD
