New Holland Construction
/
(B110) - NA BACKHOE LOADER (1/06-)
/

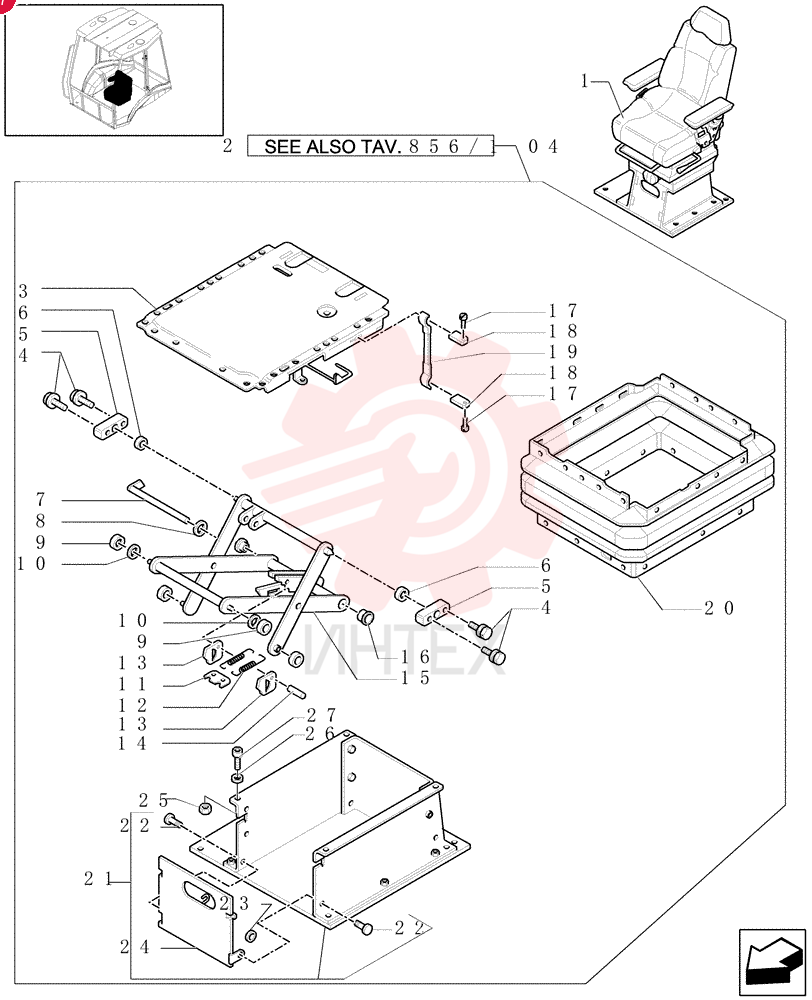

DRIVER SEAT 85826262 (4)

DRIVER SEAT 85826262 (4)

DRIVER SEAT 85826262 (4)

1 85826262

  • 85826262 - DRIVER SEAT

2 85826263

  • 85826263 - DRIVER SEAT

3 85827703

  • 85827703 - DRIVER SEAT

4 85827704

  • 85827704 - DRIVER SEAT

5 85817556

  • 85817556 - SUSPENSION

6 85817450

  • 85817450 - PLATE

7 85817444

  • 85817444 - SCREW
  • M6 x 16mm

8 9967960

  • 9967960 - BEARING

9 85817445

  • 85817445 - BUSHING

10 85817429

  • 85817429 - PIN

11 11088076

  • 11088076 - CIRCLIP
  • M10

12 9958784

  • 9958784 - SPACER

13 85817442

  • 85817442 - BUSHING

14 9958782

  • 9958782 - PLATE

15 85817430

  • 85817430 - SPRING

16 9958792

  • 9958792 - PLATE

17 9958793

  • 9958793 - BOLT

18 85817446

  • 85817446 - SUSPENSION

19 9960755

  • 9960755 - BUSHING

20 85817448

  • 85817448 - RIVET
  • 5mm OD x 10mm L

21 85817449

  • 85817449 - PLATE

22 85817447

  • 85817447 - HANDLE

23 85817428

  • 85817428 - BELLOWS

24 85817561

  • 85817561 - BASE

25 85817559

  • 85817559 - PIN

26 85817560

  • 85817560 - WASHER

27 85817558

  • 85817558 - DOOR

28 85817458

  • 85817458 - NUT

29 10519601

  • 10519601 - WASHER
  • 8.15mm ID x 17mm OD x 2mm Thk

30 14306321

  • 14306321 - HEX SOC SCREW
  • M8 x 20mm
  • Cl 8.8
