New Holland Construction
/
(B110) - NA BACKHOE LOADER (1/06-)
/

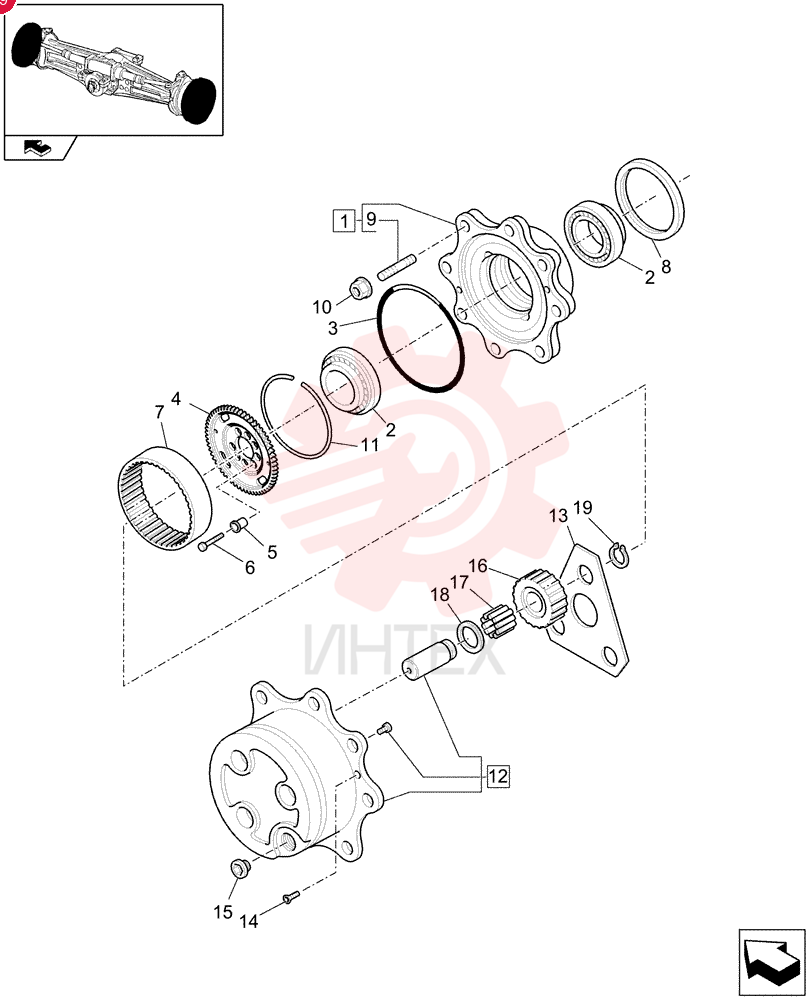

KIT 85806003 (2)

KIT 85806003 (2)

KIT 85806003 (2)

1 85806003

  • 85806003 - KIT

2 9967687

  • 9967687 - BALL BEARING

3 85805711

  • 85805711 - O-RING

4 85817698

  • 85817698 - HUB

5 85806009

  • 85806009 - BUSHING

6 85806010

  • 85806010 - SCREW
  • M10 x 45mm

7 85806008

  • 85806008 - RING GEAR

8 85827067

  • 85827067 - OIL SEAL

9 9968070

  • 9968070 - STUD

10 9968071

  • 9968071 - WHEEL NUT
  • Wheel
  • M18 x 1.5

11 85806006

  • 85806006 - RING

12 85806011

  • 85806011 - KIT

13 85806016

  • 85806016 - THRUST WASHER

14 85805709

  • 85805709 - BOLT
  • M8 x 20mm

15 85806012

  • 85806012 - PLUG
  • M30 x 2

16 85806014

  • 85806014 - PLANETARY GEAR

17 85806015

  • 85806015 - BEARING SET

18 9968084

  • 9968084 - WASHER
  • 34.6mm ID x 55mm OD x 1.5mm Thk

19 9968083

  • 9968083 - CIRCLIP
  • M34
