New Holland Construction
/
(B110B) - BACKHOE LOADER - TIER 3 (11/10-)
/

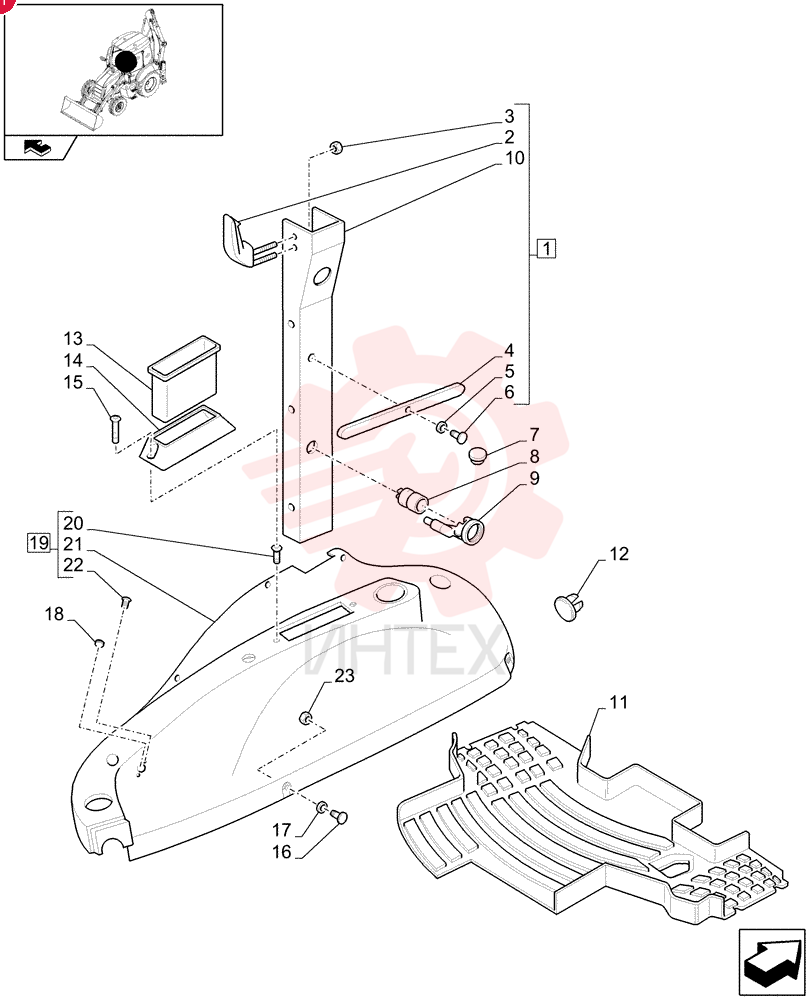

SOFT TRIM 85819287

SOFT TRIM 85819287

SOFT TRIM 85819287

1 85819287

  • 85819287 - SOFT TRIM

2 5178468

  • 5178468 - COAT HOOK

3 14084011

  • 14084011 - FLANGE NUT
  • M4 x .7
  • Flg

4 83961823

  • 83961823 - STRAP
  • 800mm L

5 12624101

  • 12624101 - WASHER
  • M5 x 22 x 2

6 85806154

  • 85806154 - RIVET

7 79111978

  • 79111978 - PLUG
  • 23mm OD

8 5148132

  • 5148132 - LAMP SOCKET

9 5148131

  • 5148131 - HOUSING

10 NSS

  • NSS - NOT SOLD SEPARAT

11 85804867

  • 85804867 - FLOOR MAT

12 87491065

  • 87491065 - CARPET

13 85808460

  • 85808460 - PLUG

14 85801979

  • 85801979 - CONTAINER

15 85801651

  • 85801651 - HOUSING

16 13276617

  • 13276617 - SCREW
  • Pozidriv Pan Hd
  • M6 x 25mm
  • Cl 5.8
  • Full Thd

17 13313417

  • 13313417 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M6 x 25mm
  • Cl 5.8
  • Full Thd

18 85801991

  • 85801991 - WASHER
  • 6.3mm OD x 18mm ID x 4mm Thk

19 82001909

  • 82001909 - PLUG
  • 33mm OD

20 87362094

  • 87362094 - SOFT TRIM

21 87362098

  • 87362098 - SOFT TRIM

22 85805347

  • 85805347 - THREADED BUSHING
  • M6 x 9.7mm OD x 20mm L

23 NSS

  • NSS - NOT SOLD SEPARAT

24 85802259

  • 85802259 - THREADED BUSHING
  • M4 x 9.7mm OD x 20mm L

25 12574211

  • 12574211 - NUT
  • M6 x 1
  • Cl 8
