New Holland Construction
/
(B110B) - BACKHOE LOADER - TIER 3 (11/10-)
/

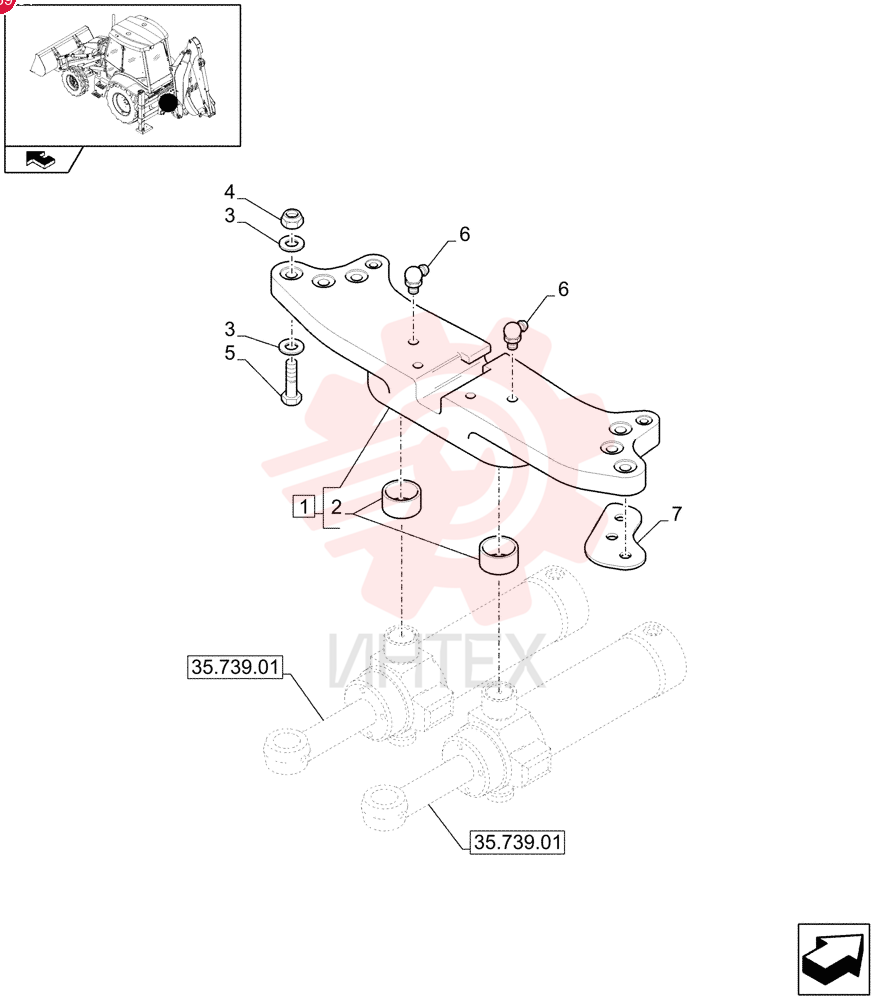

RETAINING PLATE,Bright Yellow 85818903

RETAINING PLATE,Bright Yellow 85818903

RETAINING PLATE,Bright Yellow 85818903

1 85818903

  • 85818903 - RETAINING PLATE
  • Bright Yellow

2 83910645

  • 83910645 - BUSHING
  • 70.35mm ID x 80.18mm OD x 32mm L

3 10520431

  • 10520431 - WASHER
  • 21mm ID x 35mm OD x 4mm Thk

4 12575121

  • 12575121 - NUT
  • M20 x 1.5
  • Cl 10

5 15988934

  • 15988934 - BOLT
  • Hex
  • M20 x 1.5 x 90mm
  • Cl 10.9

6 81818824

  • 81818824 - LUBE NIPPLE
  • 90 Degree
  • 1/8"-27 NPT

7 85801153

  • 85801153 - SHIM
  • 1mm Thk

8 85803039

  • 85803039 - SHIM
  • 2mm Thk
