New Holland Construction
/
(B110B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

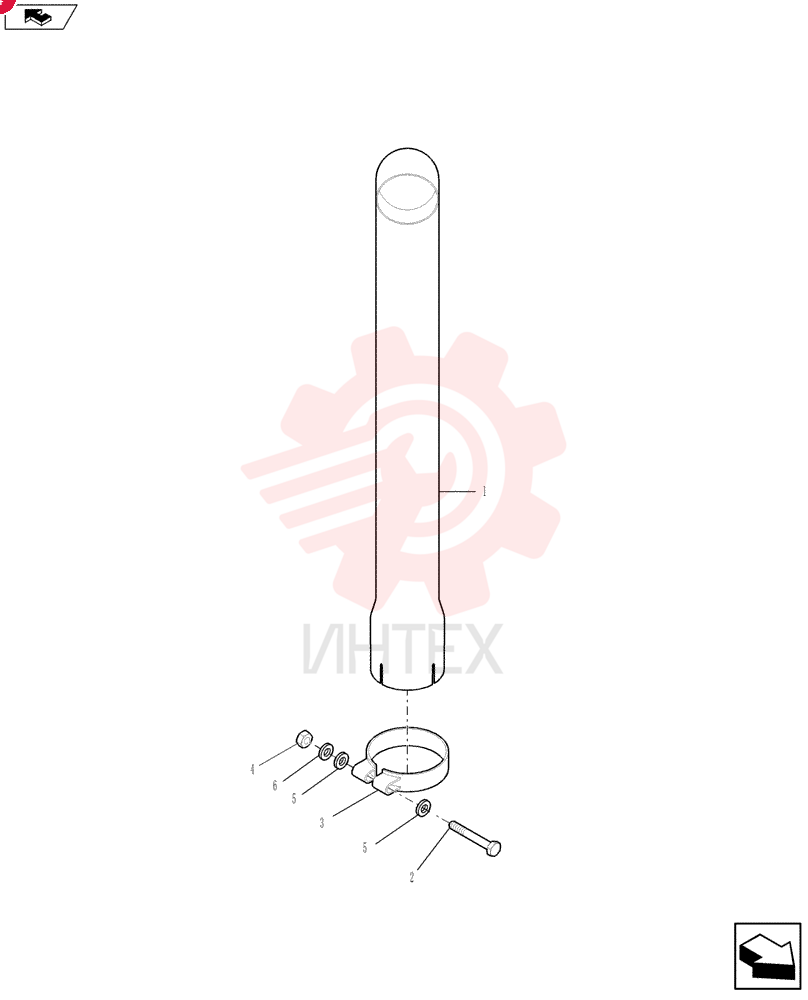

EXHAUST SYSTEM PIPE 87673905 (1)

EXHAUST SYSTEM PIPE 87673905 (1)

EXHAUST SYSTEM PIPE 87673905 (1)

1 87673905

  • 87673905 - EXHAUST SYSTEM PIPE

2 BER120116

  • BER120116 - SCREW

3 87437804

  • 87437804 - PIPE CLAMP
  • 94mm ID

4 11701721

  • 11701721 - NUT
  • M10
  • Cl 10

5 86625252

  • 86625252 - WASHER
  • 10.8mm ID x 21.5mm OD x 2.5mm Thk

6 140028

  • 140028 - WASHER
  • 10.2mm ID x 18.1mm OD x 2.2mm Thk
