New Holland Construction
/
(B110B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

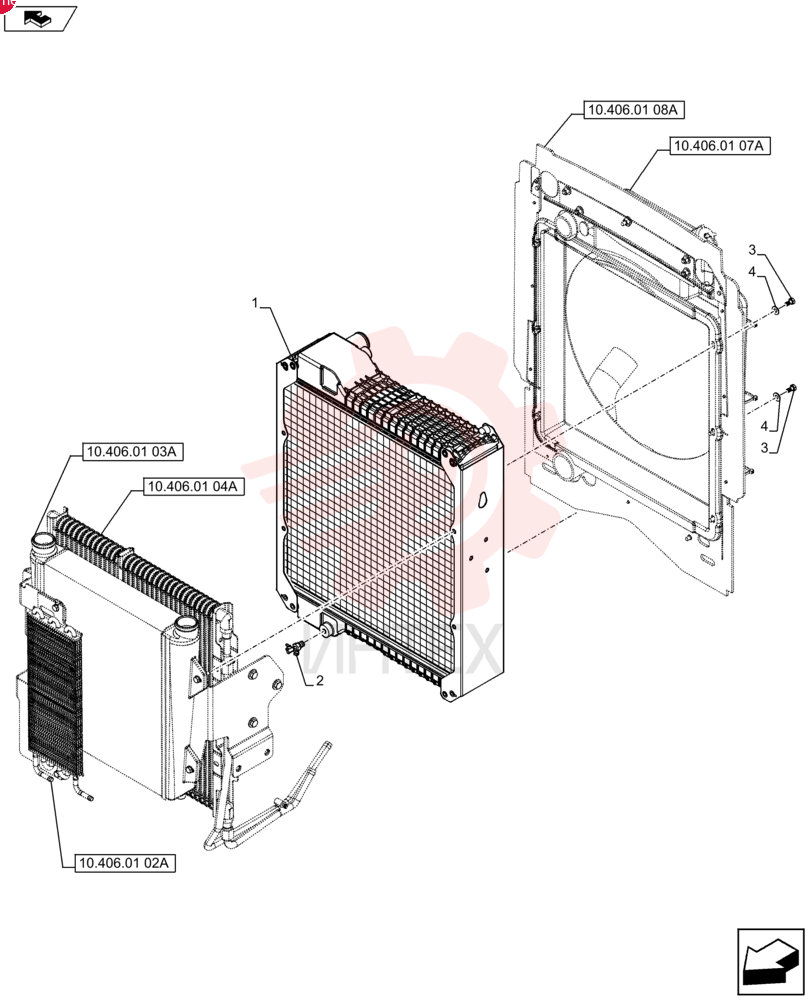

RADIATOR 87576645 (1)

RADIATOR 87576645 (1)

RADIATOR 87576645 (1)

1 87576645

  • 87576645 - RADIATOR

2 76904

  • 76904 - DRAINCOCK/TAP SUPPLY

3 86625007

  • 86625007 - BOLT
  • Hex
  • M8 x 1.25 x 16mm
  • Cl 10.9
  • Full Thd

4 86625263

  • 86625263 - WASHER
  • 9mm ID x 20mm OD x 1.6mm Thk
