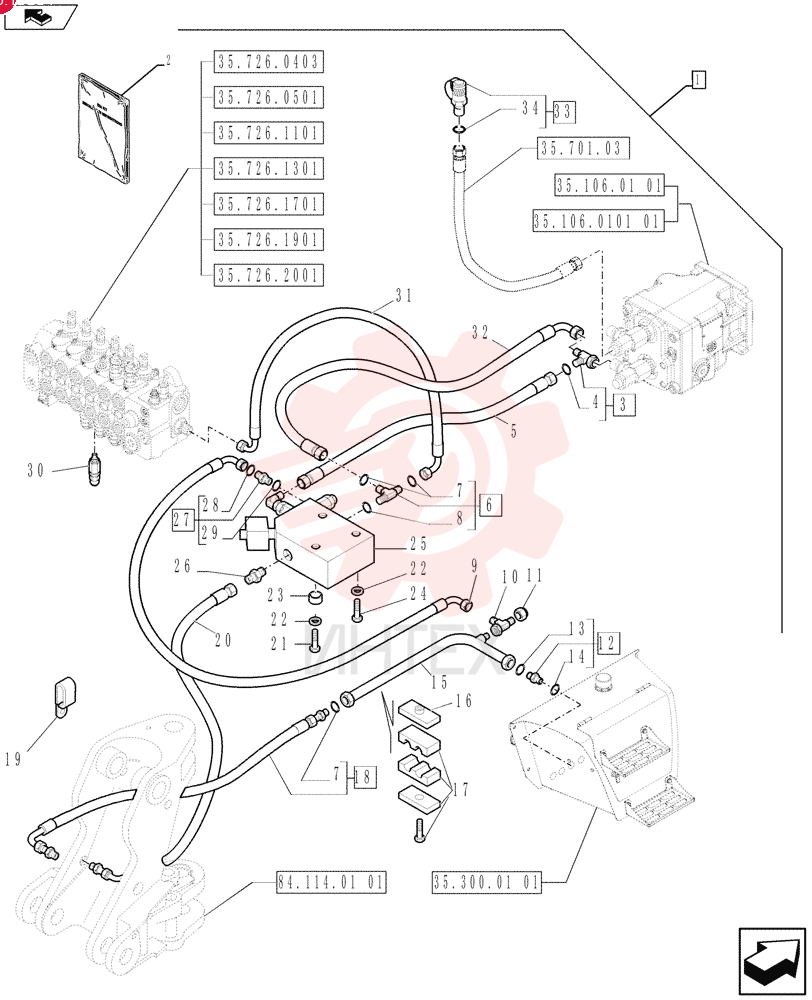

CONSTRUCTION DIA 718725069 (3)
1 718725069
- 718725069 - CONSTRUCTION DIA
2 47928228
- 47928228 - INSTRUCTION
3 84989848
- 84989848 - TEE
- 11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC
4 9993141
- 9993141 - O-RING
- 0.07" Thk x 0.364" ID
- -12
- Cl 6
- 90 Duro
5 84121388
- 84121388 - FLEXIBLE HOSE
- 8mm ID x 900mm L
6 87498964
- 87498964 - TEE
- 1-7/16-12 ORFS x 1-1/16 UN/UNF 2A ORS x 1-7/16-12 ORFS
7 9824050
- 9824050 - O-RING
- 0.07" Thk x 0.926" ID
- -21
- Cl 6
- 90 Duro
8 167266
- 167266 - O-RING
- 0.116" Thk x 0.924" ID
- -912
- Cl 6
- 90 Duro
9 85817633
- 85817633 - HYDRAULIC HOSE
- 6.35mm ID x 2050mm L
10 85807876
- 85807876 - TEE
- 1-14 ORS x 11/16-16 ORS x 1-14 SAE
11 83987627
- 83987627 - CAP
- 1-14UN-2A
12 85802801
- 85802801 - HYD CONNECTOR
- 1-11/16-12 ORFS x 1-5/16-12 ORB
13 80167268
- 80167268 - O-RING
- 0.116" Thk x 1.171" ID
- -916
- Cl 6
- 90 Duro
14 89824051
- 89824051 - O-RING
- 0.07" Thk x 1.176" ID
- -25
- Cl 6
- 90 Duro
15 87389636
- 87389636 - RETURN PIPE
16 87390531
- 87390531 - PLATE
17 87390530
- 87390530 - CLAMP
18 85820123
- 85820123 - HYDRAULIC HOSE
- 19mm ID x 2973mm L
19 85803346
- 85803346 - BRACKET
20 47913096
- 47913096 - HYDRAULIC HOSE
- 19mm ID x 2051mm L
21 395851
- 395851 - BOLT
- Hex
- M8 x 1.25 x 90mm
- Cl 8.8
- Full Thd
22 11193879
- 11193879 - BELLEVILLE WASHER
- M8 Bolt Size x 16mm OD x 1.4mm Thk
23 85802901
- 85802901 - SPACER
- 10mm ID x 16mm OD x 17.5mm L
24 16044821
- 16044821 - SCREW
- Hex
- M8 x 80mm
- Cl 8.8
25 87545337
- 87545337 - VALVE
26 87303844
- 87303844 - HYD CONNECTOR
- 1-7/16" - 12 ORFS x 1-1/16" - 12 ORB
27 83963371
- 83963371 - FITTING
- 11/16"-16 ORFS x 9/16"-18 ORB
28 81844851
- 81844851 - O-RING
- 0.07" Thk x 0.364" ID
- -12
- Cl 6
- 90 Duro
29 81845037
- 81845037 - O-RING
- 0.078" Thk x 0.468" ID
- -906
- Cl 6
- 90 Duro
30 84211070
- 84211070 - VALVE
31 87389637
- 87389637 - FLEXIBLE HOSE
- 19mm ID x 695mm L
32 84128041
- 84128041 - FLEXIBLE HOSE
- 19mm ID x 800mm L
33 85817596
- 85817596 - QUICK MALE COUPLING
- 9/16" Male
34 81845037
- 81845037 - O-RING
- 0.078" Thk x 0.468" ID
- -906
- Cl 6
- 90 Duro
