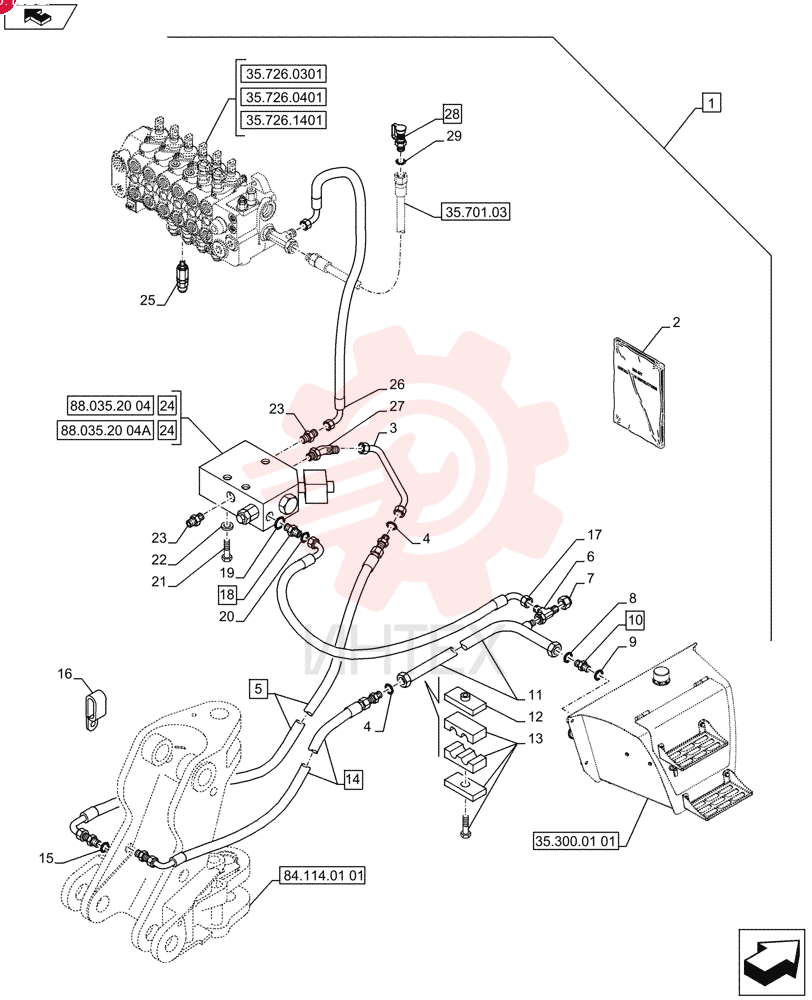

KIT 718725089 (5)
1 718725089
- 718725089 - KIT
2 84216824
- 84216824 - INSTRUCTION
3 85817421
- 85817421 - HYD TUBE
4 9824050
- 9824050 - O-RING
- 0.07" Thk x 0.926" ID
- -21
- Cl 6
- 90 Duro
5 85820122
- 85820122 - HYDRAULIC HOSE
- 19mm ID x 2203mm L
6 85807876
- 85807876 - TEE
- 1-14 ORS x 11/16-16 ORS x 1-14 SAE
7 83987627
- 83987627 - CAP
- 1-14UN-2A
8 80167268
- 80167268 - O-RING
- 0.116" Thk x 1.171" ID
- -916
- Cl 6
- 90 Duro
9 89824051
- 89824051 - O-RING
- 0.07" Thk x 1.176" ID
- -25
- Cl 6
- 90 Duro
10 85802801
- 85802801 - HYD CONNECTOR
- 1-11/16-12 ORFS x 1-5/16-12 ORB
11 87389636
- 87389636 - RETURN PIPE
12 87390531
- 87390531 - PLATE
13 87390530
- 87390530 - CLAMP
14 85820123
- 85820123 - HYDRAULIC HOSE
- 19mm ID x 2973mm L
15 9991976
- 9991976 - O-RING
- 0.07" Thk x 0.739" ID
- -18
- Cl 6
- 90 Duro
16 85803346
- 85803346 - BRACKET
17 85817633
- 85817633 - HYDRAULIC HOSE
- 6.35mm ID x 2050mm L
18 83963371
- 83963371 - FITTING
- 11/16"-16 ORFS x 9/16"-18 ORB
19 81844851
- 81844851 - O-RING
- 0.07" Thk x 0.364" ID
- -12
- Cl 6
- 90 Duro
20 81845037
- 81845037 - O-RING
- 0.078" Thk x 0.468" ID
- -906
- Cl 6
- 90 Duro
21 16044821
- 16044821 - SCREW
- Hex
- M8 x 80mm
- Cl 8.8
22 11193879
- 11193879 - BELLEVILLE WASHER
- M8 Bolt Size x 16mm OD x 1.4mm Thk
23 85803486
- 85803486 - FITTING
- 1 7/16"-12 ORFS x 1 1/16"-12 ORB
24 87677466
- 87677466 - HYDRAULIC VALVE
25 47450830
- 47450830 - FLOW CONTROL VALVE
26 84211070
- 84211070 - VALVE
27 85803428
- 85803428 - HYDRAULIC HOSE
- 19.05mm ID x 850mm L
28 85803487
- 85803487 - ELBOW
- 1'7/16-12 UN-2A x 1'1/16-12 UN-2A
29 85817596
- 85817596 - QUICK MALE COUPLING
- 9/16" Male
30 81845037
- 81845037 - O-RING
- 0.078" Thk x 0.468" ID
- -906
- Cl 6
- 90 Duro
