(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

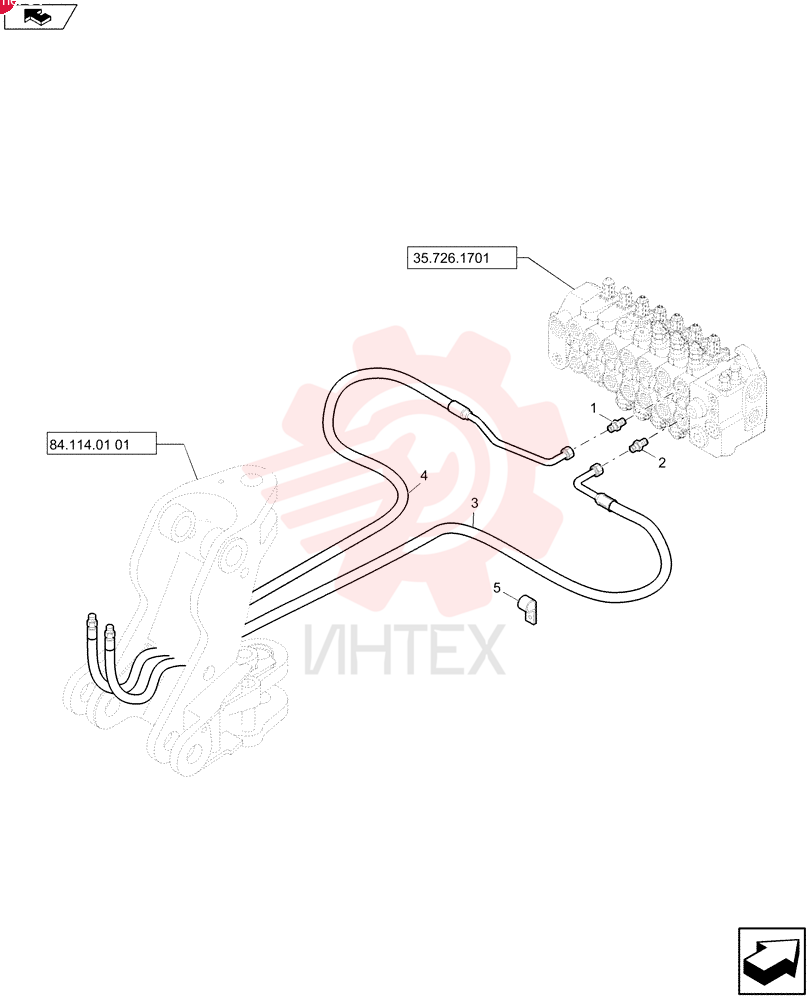

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB 83962539 (3)

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB 83962539 (3)

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB 83962539 (3)

1 83962539

  • 83962539 - HYD CONNECTOR
  • 1" - 14 ORFS x 1-1/16 - 12 ORB

2 85805258

  • 85805258 - HYD CONNECTOR
  • 9/16"-16 ORS x 1 1/16"-12
  • O-Ring

3 87755219

  • 87755219 - HYDRAULIC HOSE
  • 10mm ID x 2045mm L

4 87755218

  • 87755218 - HYDRAULIC HOSE
  • 12.7mm ID x 2050mm L

5 85803393

  • 85803393 - CLAMP
  • 18mm
  • Coat
  • 12.5mm Bolt Hole
  • P Type
