New Holland Construction
/
(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

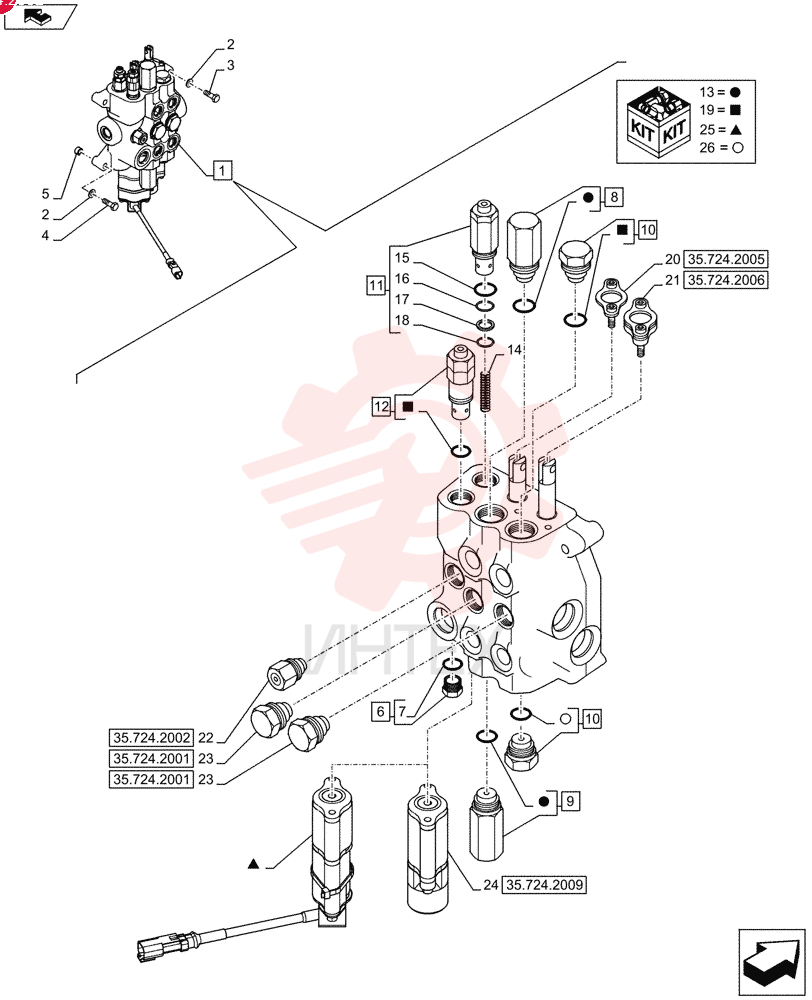

HYDRAULIC VALVE 84161432

HYDRAULIC VALVE 84161432

HYDRAULIC VALVE 84161432

1 84161432

  • 84161432 - HYDRAULIC VALVE

2 11190579

  • 11190579 - BELLEVILLE WASHER
  • M10 Bolt Size x 20mm OD x 2.3mm Thk

3 86637965

  • 86637965 - BOLT
  • Hex
  • M10 x 1.25 x 90mm
  • Cl 8.8

4 15888821

  • 15888821 - BOLT
  • Hex
  • M10 x 1.25 x 70mm
  • Cl 8.8

5 84167374

  • 84167374 - SPACER
  • 11.5mm ID x 25mm OD x 18.4mm L

6 87426233

  • 87426233 - PLUG
  • 7/8" Male

7 87455974

  • 87455974 - O-RING
  • 0.097" Thk x 0.755" ID

8 84180587

  • 84180587 - VALVE

9 84180588

  • 84180588 - VALVE

10 81868381

  • 81868381 - CHECK VALVE
  • 1-1/16" - 12

11 85815667

  • 85815667 - BY-PASS VALVE

12 87426717

  • 87426717 - VALVE PRESSURE RELIE

13 87455549

  • 87455549 - SEAL KIT

14 9968488

  • 9968488 - SPRING

15 85815668

  • 85815668 - O-RING

16 9968468

  • 9968468 - SEALING RING
  • 0.097" Thk x 0.755" ID

17 9968467

  • 9968467 - BACK-UP RING

18 9968466

  • 9968466 - SEALING RING

19 87455550

  • 87455550 - SERVICE KIT

20 87541939

  • 87541939 - GASKET KIT

21 87541940

  • 87541940 - SEAL

22 87426716

  • 87426716 - VALVE
  • CHECK

23 87426238

  • 87426238 - VALVE
  • CHECK

24 87426227

  • 87426227 - DETENT

25 84180063

  • 84180063 - KIT

26 87455580

  • 87455580 - O-RING KIT
