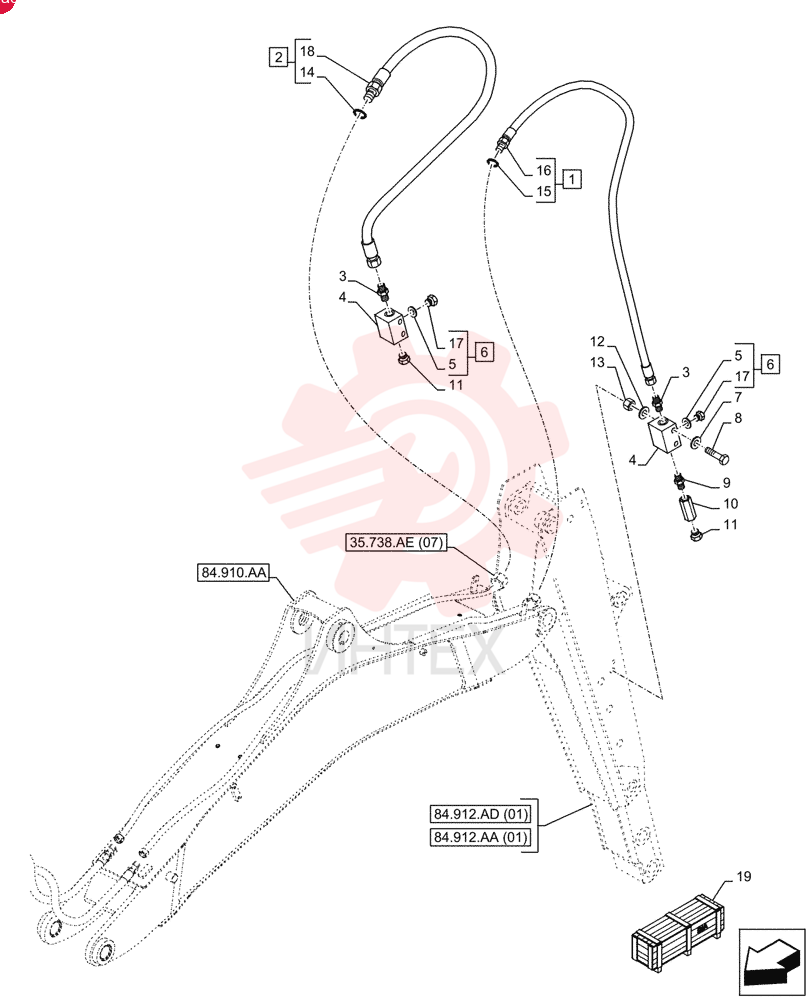

HYDRAULIC HOSE,19.05mm ID x 1650mm L 85819621 (1)
1 85819621
- 85819621 - HYDRAULIC HOSE
- 19.05mm ID x 1650mm L
2 85819620
- 85819620 - HYDRAULIC HOSE
- 25.4mm ID x 1650mm L
3 85803486
- 85803486 - FITTING
- 1 7/16"-12 ORFS x 1 1/16"-12 ORB
4 87303844
- 87303844 - HYD CONNECTOR
- 1-7/16" - 12 ORFS x 1-1/16" - 12 ORB
5 85802247
- 85802247 - BLOCK
6 80167269
- 80167269 - O-RING
- 0.097" Thk x 0.755" ID
- -910
- Cl 6
- 90 Duro
7 85803409
- 85803409 - PLUG
- 7/8" Male
8 11193879
- 11193879 - BELLEVILLE WASHER
- M8 Bolt Size x 16mm OD x 1.4mm Thk
9 16045021
- 16045021 - BOLT
- Hex
- M8 x 1.25 x 90mm
- Cl 8.8
10 85804879
- 85804879 - HYD CONNECTOR
- 1-1/16-12 UN-2A x 1-1/16-12 UN-2A
11 85802372
- 85802372 - CHECK VALVE
12 85802457
- 85802457 - PLUG
- 1-1/16" - 12
13 12647121
- 12647121 - WASHER
- 8.15mm ID x 20mm OD x 3mm Thk
14 14048211
- 14048211 - NUT
- M8 x 1.25
- Cl 8
15 9824051
- 9824051 - O-RING
- 0.07" Thk x 1.176" ID
- -25
- Cl 6
- 90 Duro
16 9824050
- 9824050 - O-RING
- 0.07" Thk x 0.926" ID
- -21
- Cl 6
- 90 Duro
17 NSS
- NSS - NOT SOLD SEPARAT
18 NSS
- NSS - NOT SOLD SEPARAT
19 NSS
- NSS - NOT SOLD SEPARAT
20 718727029
- 718727029 - DIA KIT WL
21 718727099
- 718727099 - CONSTRUCTION DIA
