(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

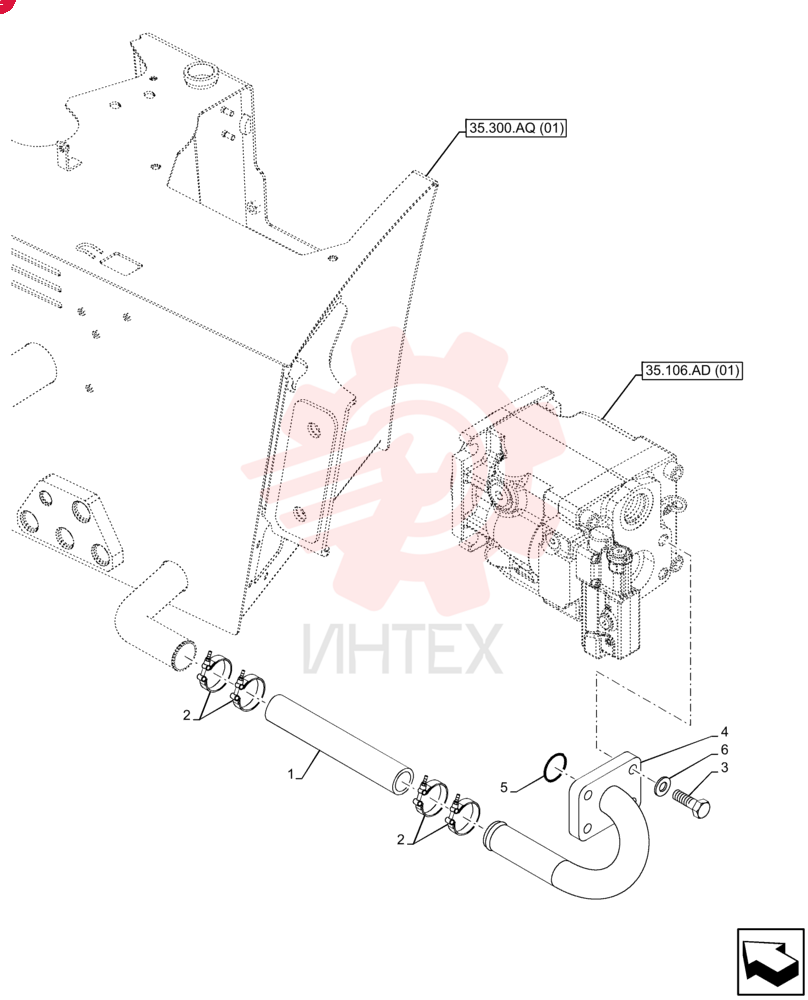

HYDRAULIC HOSE,50mm ID x 450mm L 85811870 (1)

HYDRAULIC HOSE,50mm ID x 450mm L 85811870 (1)

HYDRAULIC HOSE,50mm ID x 450mm L 85811870 (1)

1 85811870

  • 85811870 - HYDRAULIC HOSE
  • 50mm ID x 450mm L

2 259044A1

  • 259044A1 - CLAMP

3 14422021

  • 14422021 - HEX SOC SCREW
  • M12 x 30mm
  • Cl 8.8

4 47553123

  • 47553123 - HYD TUBE

5 14464680

  • 14464680 - O-RING
  • 0.139" Thk x 2.234" ID
  • -228
  • Cl 5
  • 75 Duro

6 47048963

  • 47048963 - WASHER
  • 11mm ID x 20mm OD x 2mm Thk
  • Carbon Steel
