(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

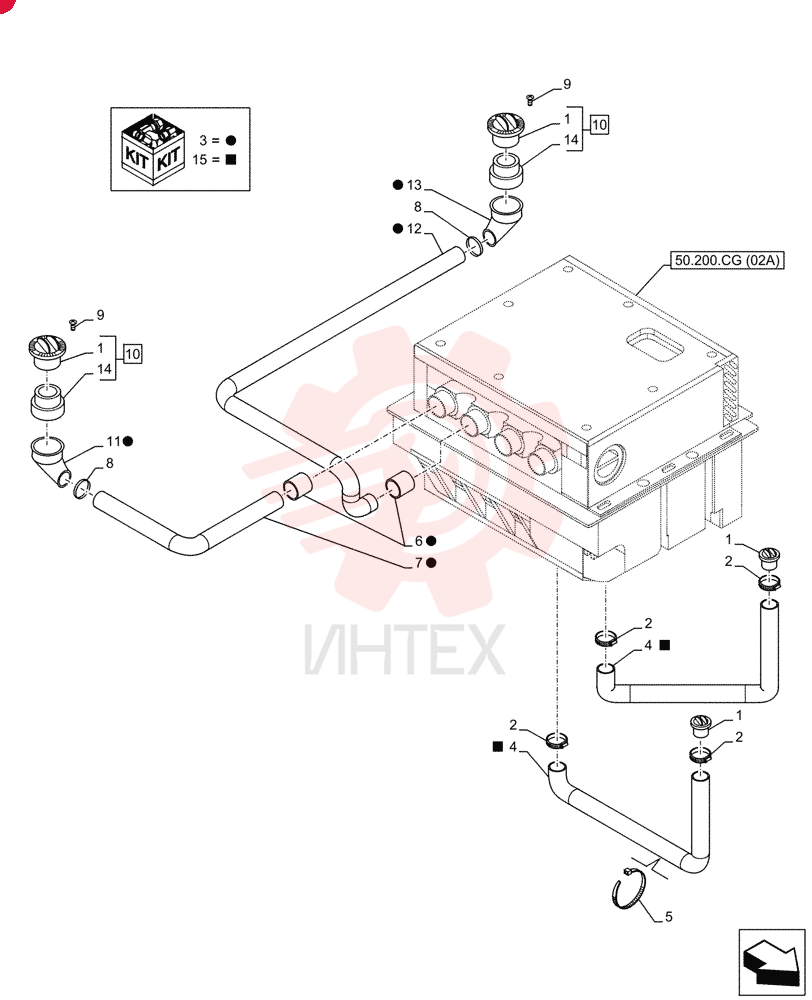

OUTLET 87362068 (2)

OUTLET 87362068 (2)

OUTLET 87362068 (2)

1 87362068

  • 87362068 - OUTLET

2 13000990

  • 13000990 - COLLAR
  • 60mm - 80mm
  • Worm Gear

3 47929960

  • 47929960 - KIT

4 NSS

  • NSS - NOT SOLD SEPARAT

5 5112712

  • 5112712 - COLLAR
  • M4.8 x 283

6 NSS

  • NSS - NOT SOLD SEPARAT

7 NSS

  • NSS - NOT SOLD SEPARAT

8 13000690

  • 13000690 - HOSE CLAMP
  • 32mm - 50mm
  • Worm Gear

9 15915901

  • 15915901 - SCREW
  • Flat Hd
  • M3.5 x 1.3 x 16mm

10 87362065

  • 87362065 - DIFFUSER

11 NSS

  • NSS - NOT SOLD SEPARAT

12 NSS

  • NSS - NOT SOLD SEPARAT

13 NSS

  • NSS - NOT SOLD SEPARAT

14 87362071

  • 87362071 - REDUCER

15 47930711

  • 47930711 - TUBE
