New Holland Construction
/
(B110C) - BACKHOE LOADER - TIER 4B (2/15-)
/

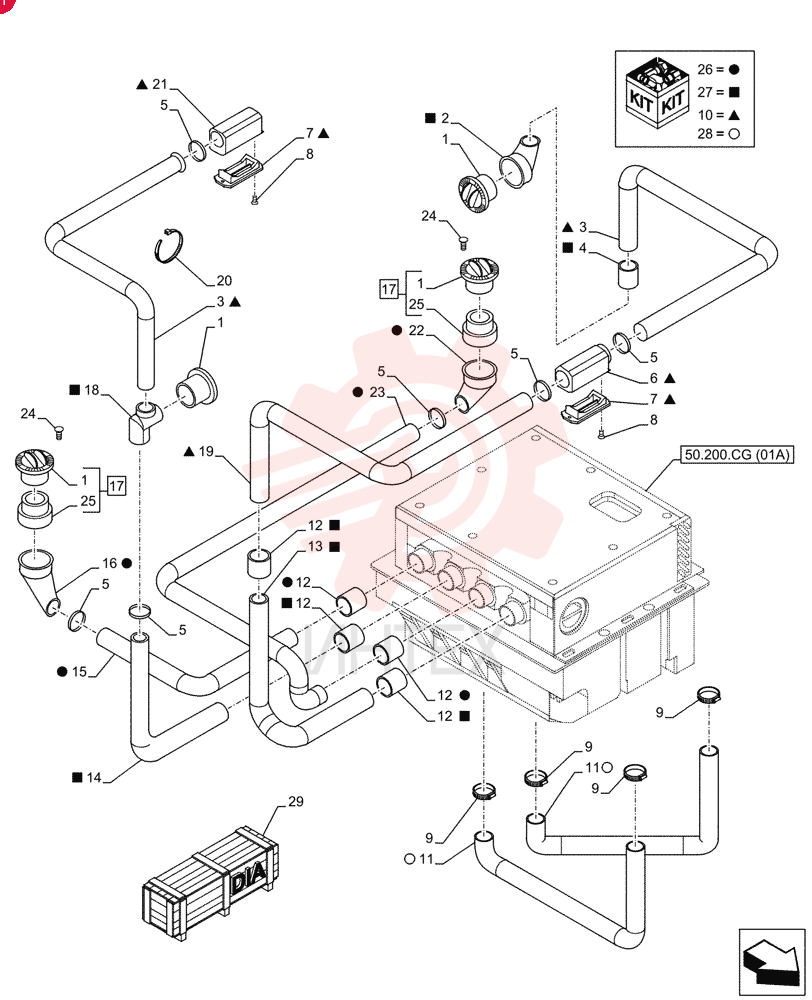

OUTLET 87362068 (4)

OUTLET 87362068 (4)

OUTLET 87362068 (4)

1 87362068

  • 87362068 - OUTLET

2 NSS

  • NSS - NOT SOLD SEPARAT

3 NSS

  • NSS - NOT SOLD SEPARAT

4 NSS

  • NSS - NOT SOLD SEPARAT

5 13000690

  • 13000690 - HOSE CLAMP
  • 32mm - 50mm
  • Worm Gear

6 NSS

  • NSS - NOT SOLD SEPARAT

7 NSS

  • NSS - NOT SOLD SEPARAT

8 14440327

  • 14440327 - SCREW
  • Flat Csk Hd
  • M4 x 20mm
  • Cl 8.8

9 13000990

  • 13000990 - COLLAR
  • 60mm - 80mm
  • Worm Gear

10 47930014

  • 47930014 - KIT

11 NSS

  • NSS - NOT SOLD SEPARAT

12 NSS

  • NSS - NOT SOLD SEPARAT

13 NSS

  • NSS - NOT SOLD SEPARAT

14 NSS

  • NSS - NOT SOLD SEPARAT

15 NSS

  • NSS - NOT SOLD SEPARAT

16 NSS

  • NSS - NOT SOLD SEPARAT

17 87362065

  • 87362065 - DIFFUSER

18 NSS

  • NSS - NOT SOLD SEPARAT

19 NSS

  • NSS - NOT SOLD SEPARAT

20 5112712

  • 5112712 - COLLAR
  • M4.8 x 283

21 NSS

  • NSS - NOT SOLD SEPARAT

22 NSS

  • NSS - NOT SOLD SEPARAT

23 NSS

  • NSS - NOT SOLD SEPARAT

24 15915901

  • 15915901 - SCREW
  • Flat Hd
  • M3.5 x 1.3 x 16mm

25 87362071

  • 87362071 - REDUCER

26 47929960

  • 47929960 - KIT

27 47929997

  • 47929997 - KIT

28 47930711

  • 47930711 - TUBE

29 47944310

  • 47944310 - CONSTRUCTION DIA
