New Holland Construction
/
(B115 TIER 3) - LOADER BACKHOE (2/07-)
/

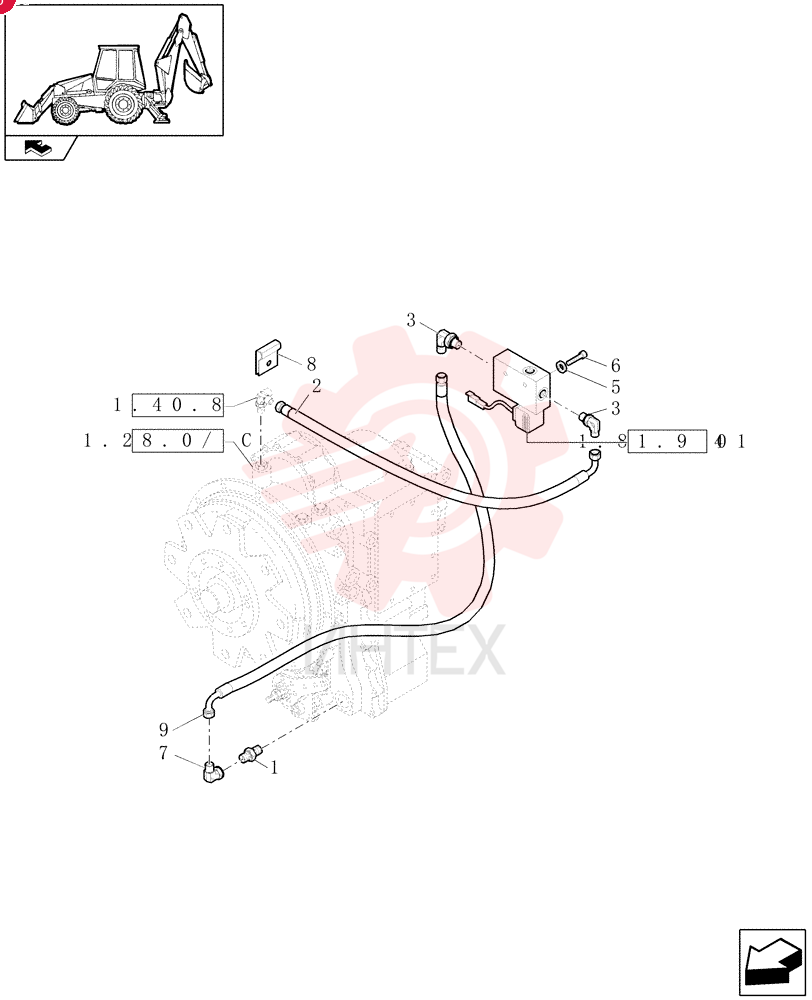

HYD CONNECTOR 87403805

HYD CONNECTOR 87403805

HYD CONNECTOR 87403805

1 87403805

  • 87403805 - HYD CONNECTOR

2 85805260

  • 85805260 - FLEXIBLE HOSE

3 85802234

  • 85802234 - 90 ELBOW
  • 7/16"-20 JIC x 9/16"-18 ORB

4 85817265

  • 85817265 - SOLENOID VALVE
  • 12V

5 11197779

  • 11197779 - BELLEVILLE WASHER
  • M6 Bolt Size x 12mm OD x 1.2mm Thk

6 10903221

  • 10903221 - SCREW
  • Hex
  • M6 x 40mm
  • Cl 8.8

7 47050634

  • 47050634 - ELBOW

8 14560187

  • 14560187 - COLLAR
  • 199mm L

9 85819068

  • 85819068 - FLEXIBLE HOSE
  • 6.40 mm ID x 2100 mm L
