New Holland Construction
/
(B115 TIER 3) - LOADER BACKHOE (2/07-)
/

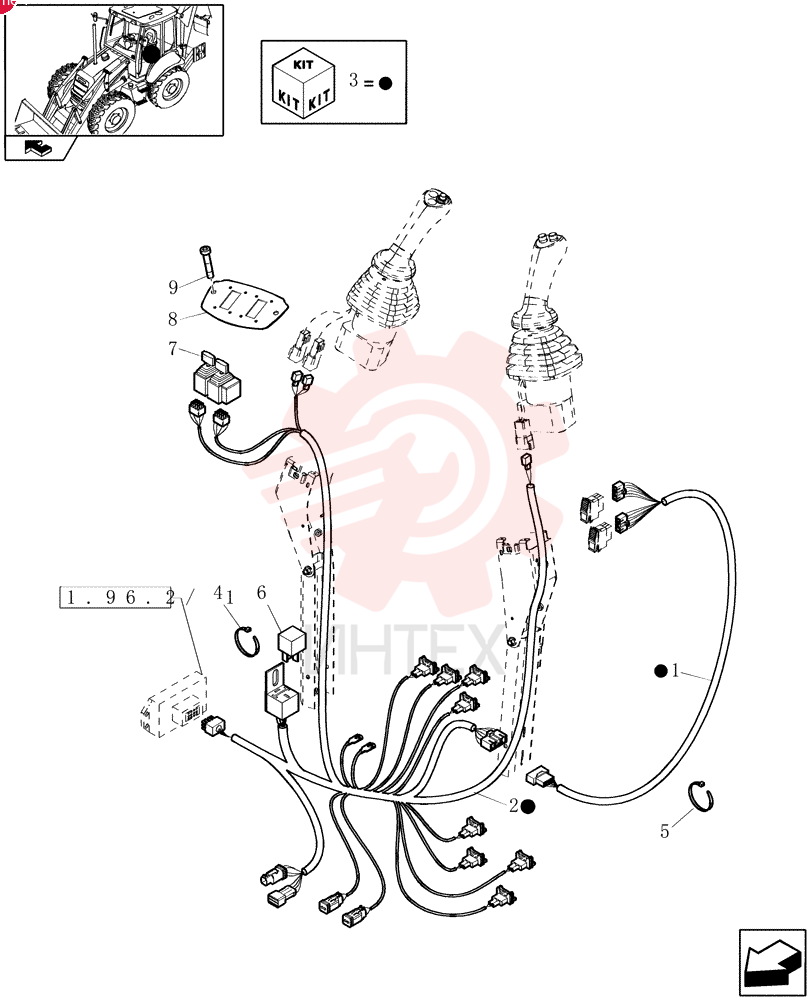

WIRE HARNESS 85828216

WIRE HARNESS 85828216

WIRE HARNESS 85828216

1 85828216

  • 85828216 - WIRE HARNESS

2 87573079

  • 87573079 - HARNESS

3 87573078

  • 87573078 - HARNESS

4 14560187

  • 14560187 - COLLAR
  • 199mm L

5 47044780

  • 47044780 - MOUNTING CLIP

6 85821537

  • 85821537 - RELAY
  • 12V
  • 40A

7 86988086

  • 86988086 - JOYSTICK

8 87435381

  • 87435381 - MOUNTING PLATE

9 85821534

  • 85821534 - SCREW
  • Phillips Drive
  • Pan HD
  • #10 - 24 x 1/2"
