(B115B) - BACKHOE LOADER TIER 3 (2008)
/

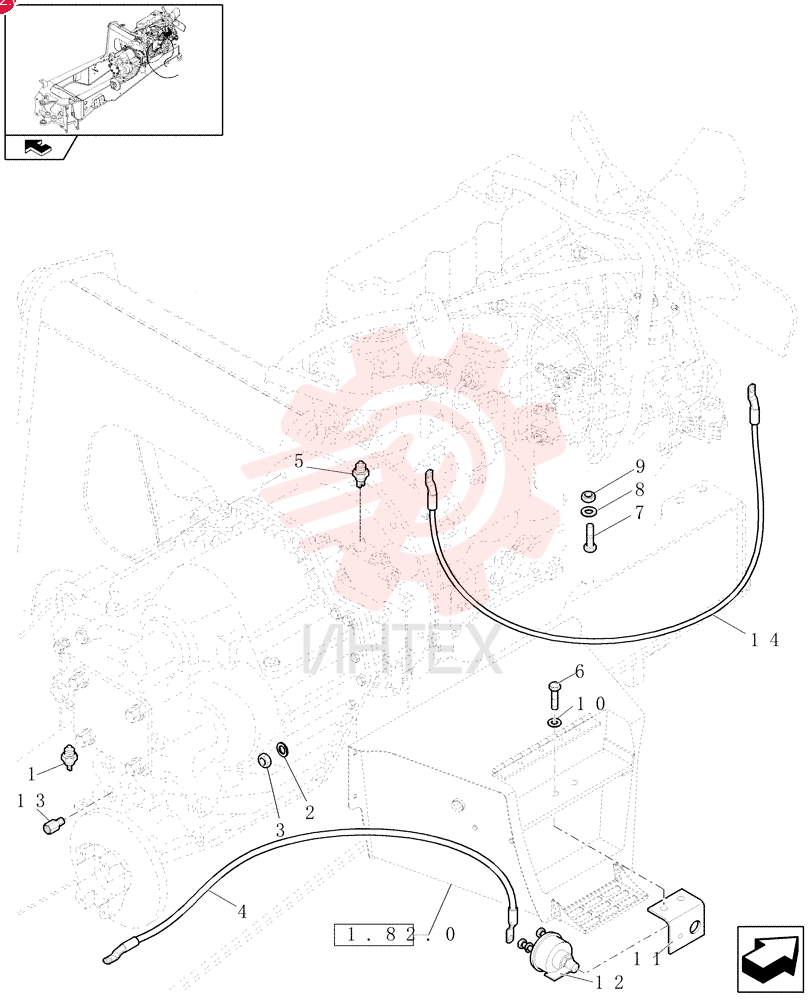

TEMPERATURE SENDER 47048895 (1)

TEMPERATURE SENDER 47048895 (1)

TEMPERATURE SENDER 47048895 (1)

1 47048895

  • 47048895 - TEMPERATURE SENDER

2 12647121

  • 12647121 - WASHER
  • 8.15mm ID x 20mm OD x 3mm Thk

3 16104111

  • 16104111 - NUT
  • Prevailing Torque
  • M8
  • 1.25 Pitch
  • 10.6mm High
  • Cl 08
  • ZND

4 87427925

  • 87427925 - CABLE
  • 1760mm L

5 85818894

  • 85818894 - PRESSURE SWITCH

6 16043421

  • 16043421 - BOLT
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8
  • Full Thd

7 47049010

  • 47049010 - BOLT
  • Hvy Hex
  • M10 x 20mm
  • Cl 8.8

8 47048993

  • 47048993 - LOCK WASHER
  • 10mm ID

9 47049031

  • 47049031 - NUT
  • M10 x 1.5
  • Cl 10

10 11197879

  • 11197879 - BELLEVILLE WASHER
  • 8.4mm ID x 16mm OD x 2.2mm Thk

11 87613641

  • 87613641 - SUPPORT

12 87409316

  • 87409316 - SWITCH

13 47050660

  • 47050660 - ELBOW

14 87636291

  • 87636291 - CABLE
  • 450mm L
