(B115B) - BACKHOE LOADER TIER 3 (2008)
/

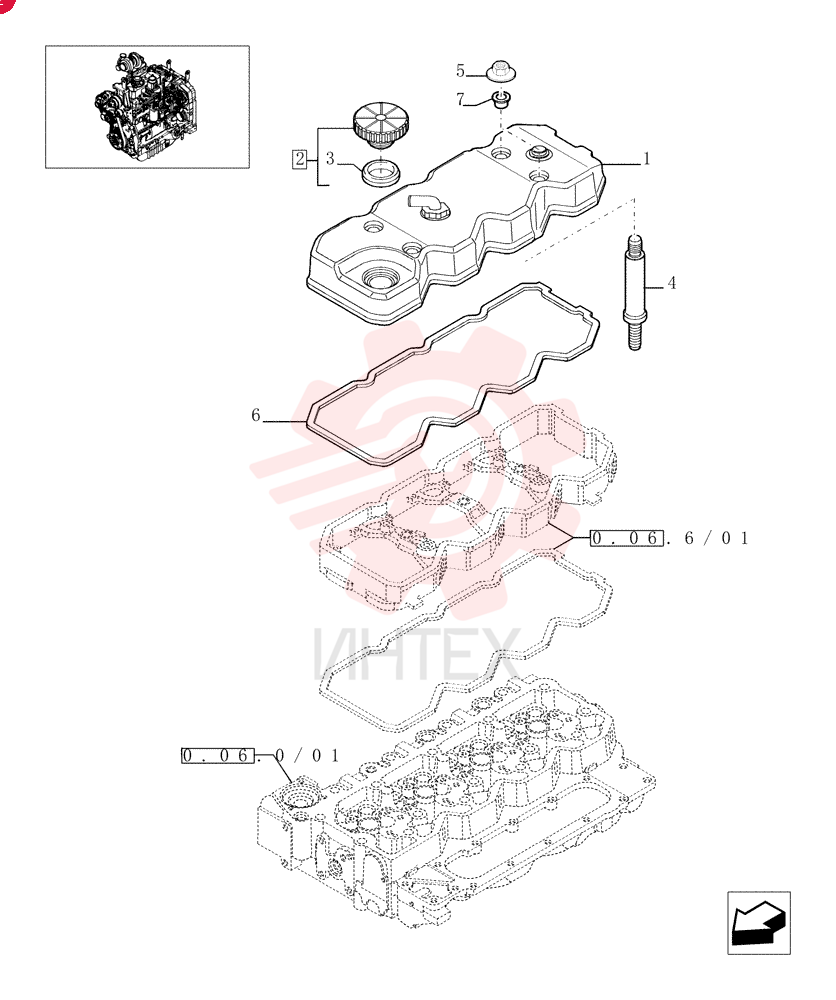

VALVE COVER 2853858

VALVE COVER 2853858

VALVE COVER 2853858

1 2853858

  • 2853858 - VALVE COVER

2 2856707

  • 2856707 - FILLER CAP

3 2852774

  • 2852774 - GASKET
  • 38mm ID x 51mm OD x 8mm Thk

4 2854812

  • 2854812 - STUD
  • M8 x 1.25 x 113mm

5 4893936

  • 4893936 - FLANGE NUT
  • Hex
  • M13
  • RH Thd
  • Cl 9.8

6 4899228

  • 4899228 - GASKET
  • 12mm Thk

7 4899239

  • 4899239 - ISOLATOR
  • 29mm OD x 13mm L
