(B115B) - BACKHOE LOADER TIER 3 (2008)
/

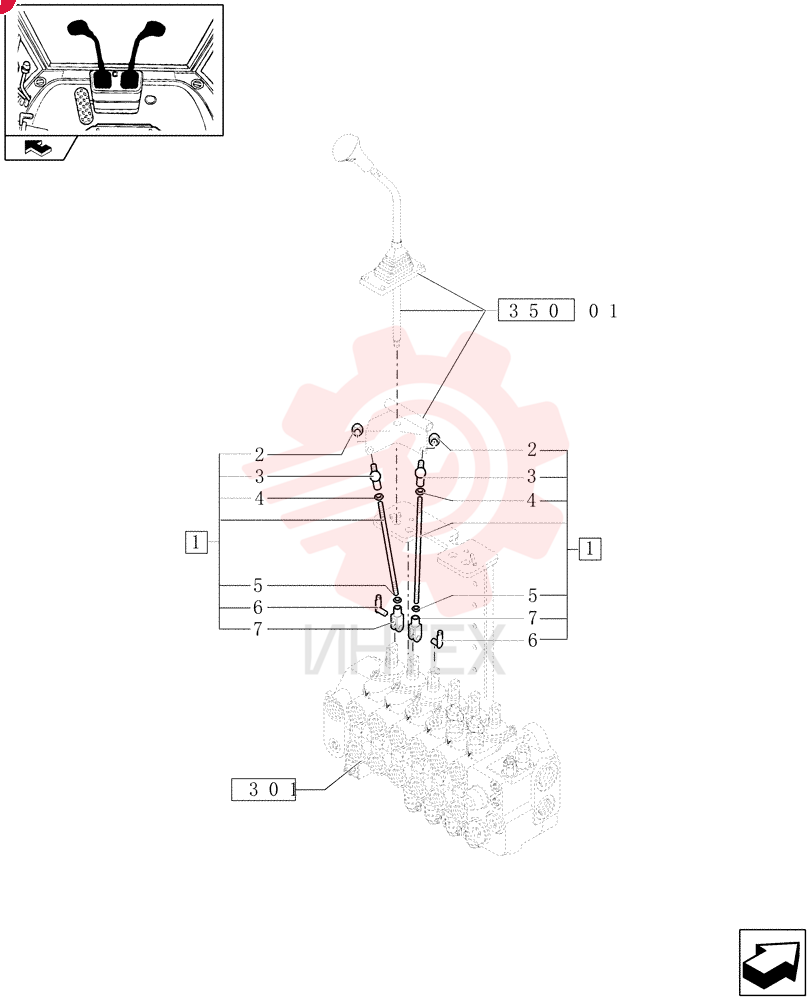

TIE-ROD,M16 x 1.5 x mm

TIE-ROD,M16 x 1.5 x mm

TIE-ROD,M16 x 1.5 x mm

1 85805237

  • 85805237 - TIE-ROD
  • M16 x 1.5 x mm

2 14048211

  • 14048211 - NUT
  • M8 x 1.25
  • Cl 8

3 85804375

  • 85804375 - BALL JOINT
  • M8

4 16102311

  • 16102311 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04

5 16102911

  • 16102911 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04
  • LH

6 85802738

  • 85802738 - RETAINER
  • 8mm OD x 30mm L

7 11991971

  • 11991971 - CLEVIS
  • M8
