(B115B) - BACKHOE LOADER TIER 3 (2008)
/

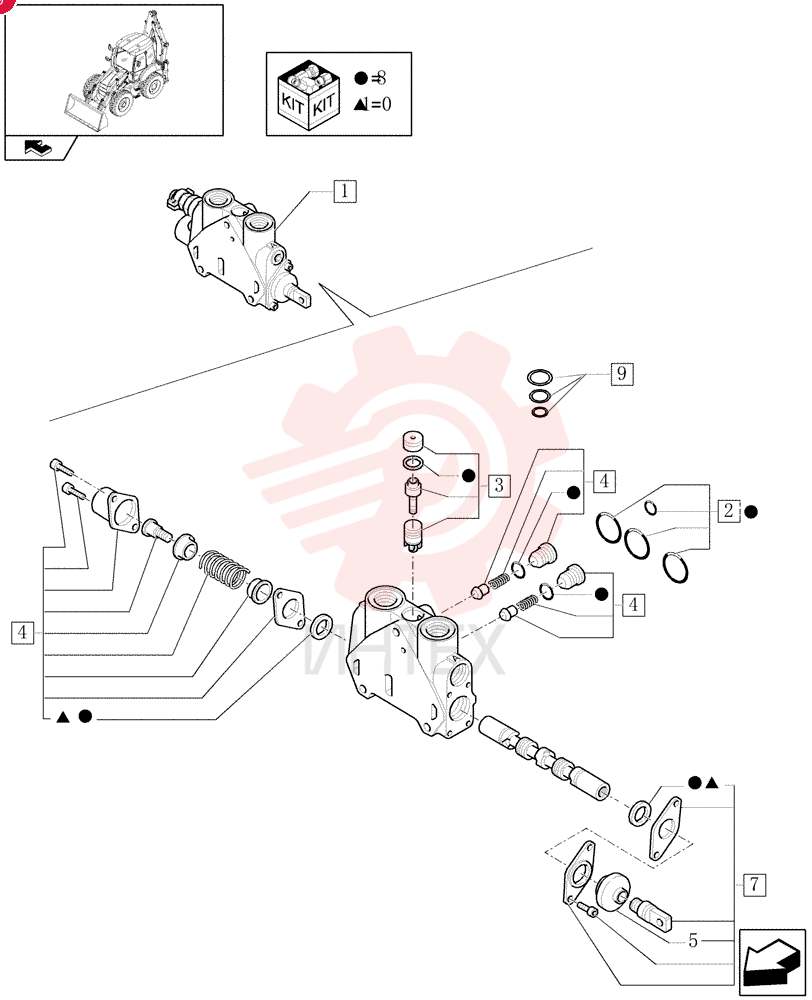

VALVE SECTION 87542780 (2)

VALVE SECTION 87542780 (2)

VALVE SECTION 87542780 (2)

1 87542780

  • 87542780 - VALVE SECTION

2 85819148

  • 85819148 - SEAL KIT
  • Between Control Valve Sections

3 85819378

  • 85819378 - KIT

4 85811938

  • 85811938 - KIT
  • Check Valve

5 85820130

  • 85820130 - BOOT

6 85824279

  • 85824279 - KIT

7 85824278

  • 85824278 - KIT

8 85824281

  • 85824281 - SEAL KIT
  • Control Valve Section
  • Complete

9 85819040

  • 85819040 - SEAL KIT

10 85824283

  • 85824283 - SEAL KIT
