(B115B) - BACKHOE LOADER TIER 3 (2008)
/

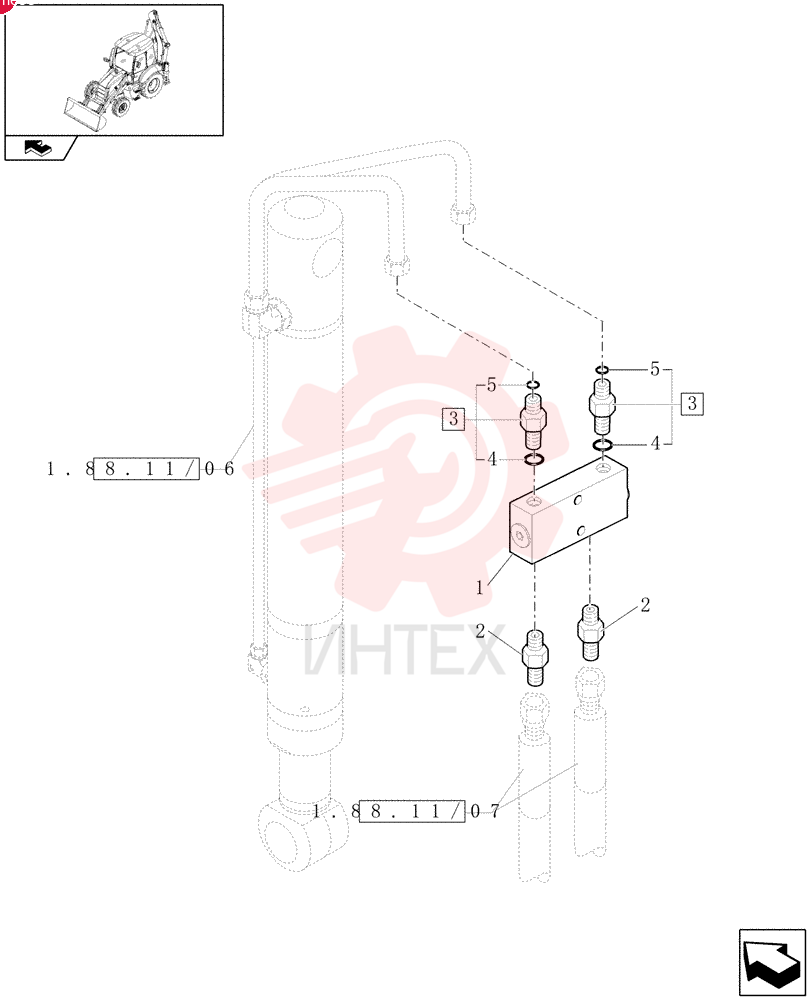

VALVE 87374648

VALVE 87374648

VALVE 87374648

1 87374648

  • 87374648 - VALVE

2 83985067

  • 83985067 - HYD CONNECTOR
  • 13/16" - 16 ORFS x 9/16" - 18 ORB

3 83963371

  • 83963371 - FITTING
  • 11/16"-16 ORFS x 9/16"-18 ORB

4 89617873

  • 89617873 - O-RING
  • 0.078" Thk x 0.468" ID
  • -906
  • Cl 6
  • 90 Duro

5 81844851

  • 81844851 - O-RING
  • 0.07" Thk x 0.364" ID
  • -12
  • Cl 6
  • 90 Duro
