(B90B) - BACKHOE LOADER - TIER 3 (11/10-)
/

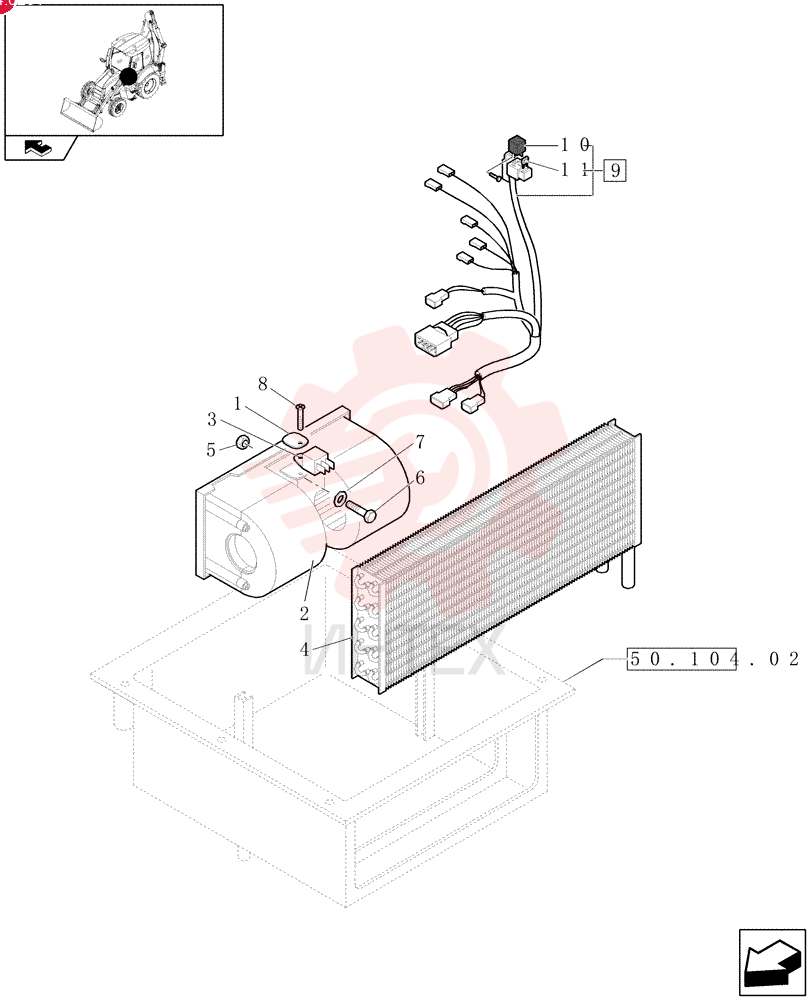

RETAINING PLATE 85817289 (1)

RETAINING PLATE 85817289 (1)

RETAINING PLATE 85817289 (1)

1 85817289

  • 85817289 - RETAINING PLATE

2 85813079

  • 85813079 - ELECTRIC BLOWER

3 85804041

  • 85804041 - RESISTOR

4 87314527

  • 87314527 - HEATER

5 12574211

  • 12574211 - NUT
  • M6 x 1
  • Cl 8

6 10902424

  • 10902424 - SCREW
  • Hex
  • M6 x 20mm
  • Cl 8.8
  • Full Thd

7 11197774

  • 11197774 - BELLEVILLE WASHER
  • M6 Bolt Size x 12mm OD x 1.2mm Thk

8 85817189

  • 85817189 - SCREW

9 87314517

  • 87314517 - WIRE HARNESS

10 85805144

  • 85805144 - RELAY

11 9504310

  • 9504310 - FUSE
