New Holland Construction
/
(B90B) - BACKHOE LOADER - TIER 3 (11/10-)
/

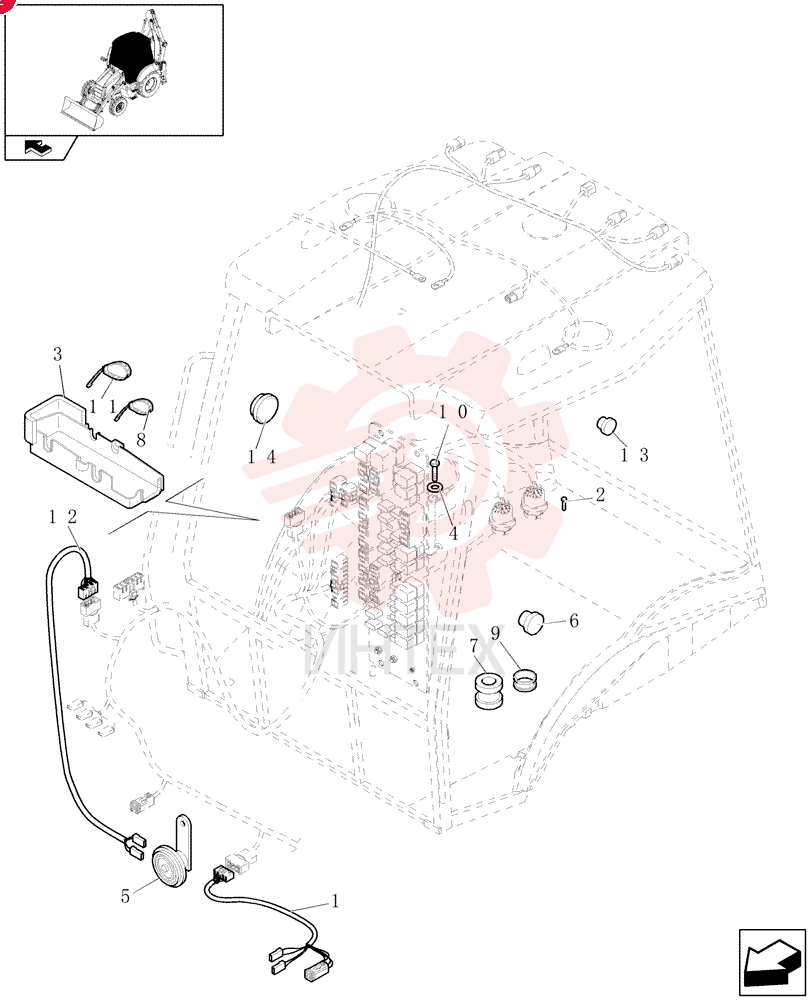

WIRE HARNESS 85819195

WIRE HARNESS 85819195

WIRE HARNESS 85819195

1 85819195

  • 85819195 - WIRE HARNESS

2 13272214

  • 13272214 - SCREW
  • Pozidriv Pan Hd
  • M4 x 16mm
  • Cl 5.8
  • Full Thd

3 85825136

  • 85825136 - COVER

4 11193879

  • 11193879 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

5 87689317

  • 87689317 - HORN

6 79111978

  • 79111978 - PLUG
  • 23mm OD

7 10398980

  • 10398980 - GROMMET
  • 36mm ID x 46mm GRV ø x 56mm OD x 15mm Thk

8 5112712

  • 5112712 - COLLAR
  • M4.8 x 283

9 10398680

  • 10398680 - GROMMET
  • 25mm ID x 33mm GRV ø x 42mm OD x 15mm Thk

10 16043121

  • 16043121 - SCREW
  • Hex
  • M8 x 1.25 x 14mm
  • Cl 8.8
  • Full Thd

11 85805383

  • 85805383 - CABLE TIE

12 87552128

  • 87552128 - ELECTRIC CABLE

13 85819193

  • 85819193 - WIRE HARNESS

14 85802310

  • 85802310 - PLUG
  • Black

15 85808460

  • 85808460 - PLUG
