(B90B) - BACKHOE LOADER TIER 3 (2008)
/

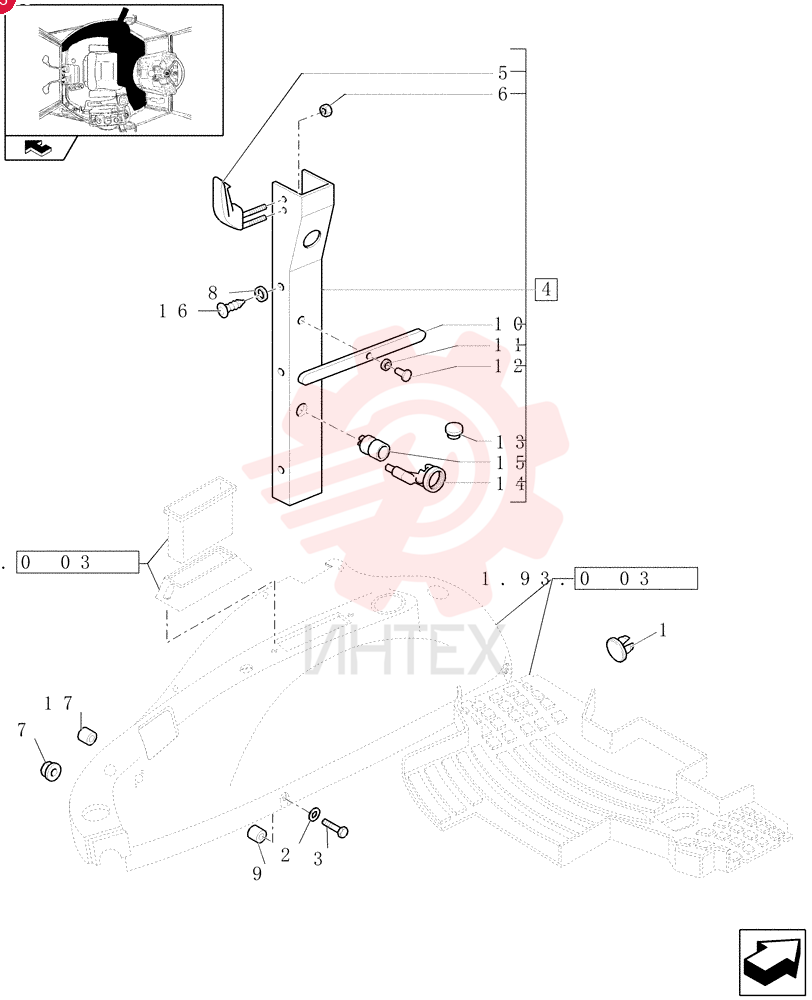

PLUG 85808460

PLUG 85808460

PLUG 85808460

1 85808460

  • 85808460 - PLUG

2 12647004

  • 12647004 - WASHER
  • 8.15mm ID x 25mm OD x 2.5mm Thk

3 13313417

  • 13313417 - SCREW
  • Pozidriv Oval Hd
  • Csk
  • M6 x 25mm
  • Cl 5.8
  • Full Thd

4 85819287

  • 85819287 - SOFT TRIM

5 5178468

  • 5178468 - COAT HOOK

6 14084011

  • 14084011 - FLANGE NUT
  • M4 x .7
  • Flg

7 14059314

  • 14059314 - FLANGE NUT
  • Hex
  • M8 x 1
  • Cl 8

8 14084814

  • 14084814 - FLANGE NUT
  • M8 x 1.25
  • Flg

9 10519604

  • 10519604 - WASHER
  • 8.15mm ID x 17mm OD x 2mm Thk

10 15627011

  • 15627011 - RIVET
  • Flat
  • M6 OD x 15.5mm L

11 83961823

  • 83961823 - STRAP
  • 800mm L

12 12624101

  • 12624101 - WASHER
  • M5 x 22 x 2

13 85806154

  • 85806154 - RIVET

14 79111978

  • 79111978 - PLUG
  • 23mm OD

15 5148132

  • 5148132 - LAMP SOCKET

16 5148131

  • 5148131 - HOUSING

17 81870039

  • 81870039 - FASTENER
  • M8 x 1.5 x 22mm

18 12574211

  • 12574211 - NUT
  • M6 x 1
  • Cl 8
