New Holland Construction
/
(B90B) - BACKHOE LOADER TIER 3 (2008)
/

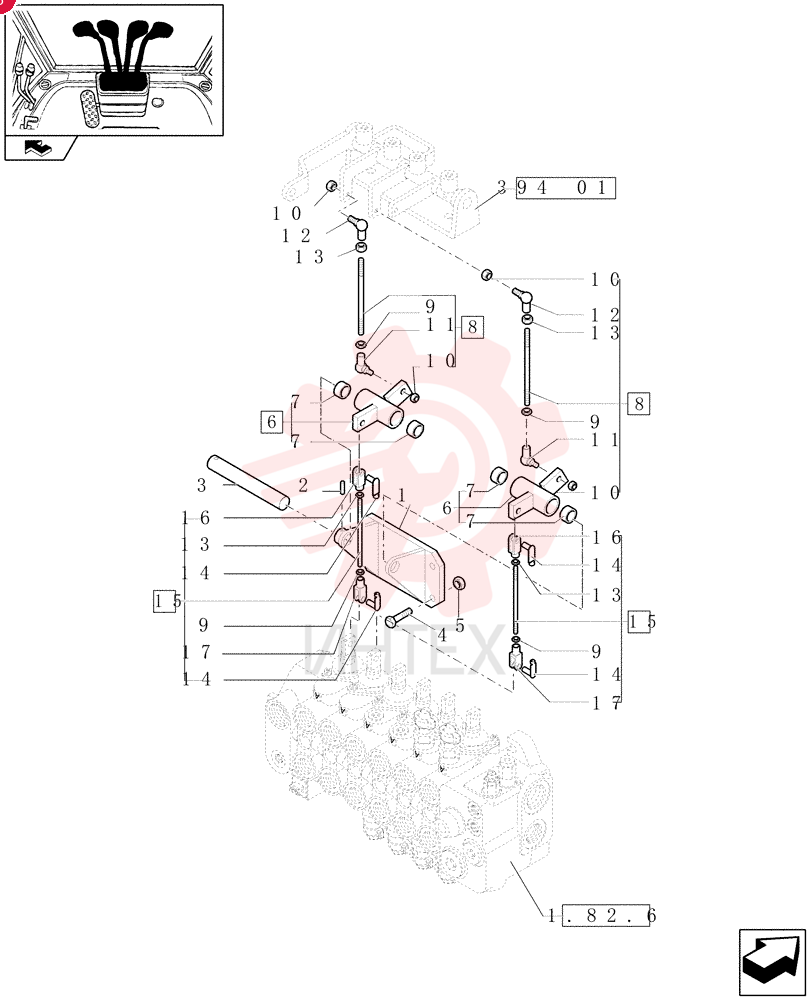

SUPPORT 85803360

SUPPORT 85803360

SUPPORT 85803360

1 85803360

  • 85803360 - SUPPORT

2 13940370

  • 13940370 - ROLL PIN
  • M5 x 26
  • Coiled

3 85803364

  • 85803364 - PIN
  • 16mm OD x 135mm L

4 16043621

  • 16043621 - BOLT
  • Hex
  • M8 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

5 16104111

  • 16104111 - NUT
  • Prevailing Torque
  • M8
  • 1.25 Pitch
  • 10.6mm High
  • Cl 08
  • ZND

6 85807926

  • 85807926 - BELLCRANK

7 85802494

  • 85802494 - BUSHING
  • 16.09mm ID x 19.13mm OD x 8mm L

8 85804736

  • 85804736 - TIE-ROD
  • M8 x 156.5mm L

9 16102911

  • 16102911 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04
  • LH

10 14048211

  • 14048211 - NUT
  • M8 x 1.25
  • Cl 8

11 85804376

  • 85804376 - BALL JOINT
  • M8

12 85804375

  • 85804375 - BALL JOINT
  • M8

13 16102311

  • 16102311 - THIN NUT
  • Thin
  • M8 x 1.25
  • Cl 04

14 85802738

  • 85802738 - RETAINER
  • 8mm OD x 30mm L

15 85803447

  • 85803447 - TIE-ROD

16 85807914

  • 85807914 - TIE-ROD

17 10007871

  • 10007871 - YOKE
  • 8mm ID Pin Hole
  • M8 x 42mm L

18 11991971

  • 11991971 - CLEVIS
  • M8
