(B90B) - BACKHOE LOADER TIER 3 (2008)
/

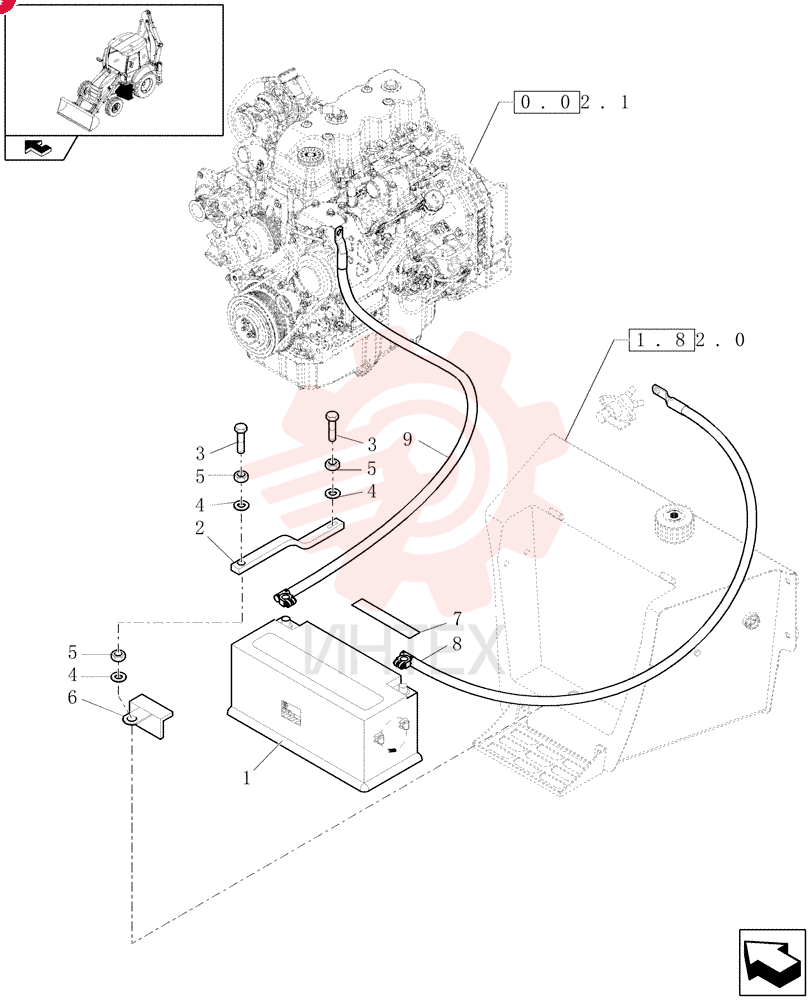

WET BATTERY,12V, 95AH, 900CCA

WET BATTERY,12V, 95AH, 900CCA

WET BATTERY,12V, 95AH, 900CCA

1 85826206

  • 85826206 - WET BATTERY
  • 12V
  • 95AH
  • 900CCA

2 F910DSW

  • F910DSW - WET BATTERY

3 BNH49MFW

  • BNH49MFW - WET BATTERY
  • 12V
  • 95AH
  • 900CCA

4 9673604DS

  • 9673604DS - DRY BATTERY

5 9673604WDS

  • 9673604WDS - WET BATTERY

6 87416929

  • 87416929 - BRACKET

7 87415781

  • 87415781 - BRACKET

8 412005

  • 412005 - BOLT
  • Hex
  • M10 x 1.5 x 220mm
  • Cl 8.8

9 47048963

  • 47048963 - WASHER
  • 11mm ID x 20mm OD x 2mm Thk
  • Carbon Steel

10 47049041

  • 47049041 - NUT
  • Hex
  • M10 x 1.5
  • Cl 8

11 47048788

  • 47048788 - ANGLE

12 47049590

  • 47049590 - DECAL

13 87311611

  • 87311611 - GROUND CABLE

14 87567413

  • 87567413 - CABLE
