(B90B) - BACKHOE LOADER TIER 3 (2008)
/

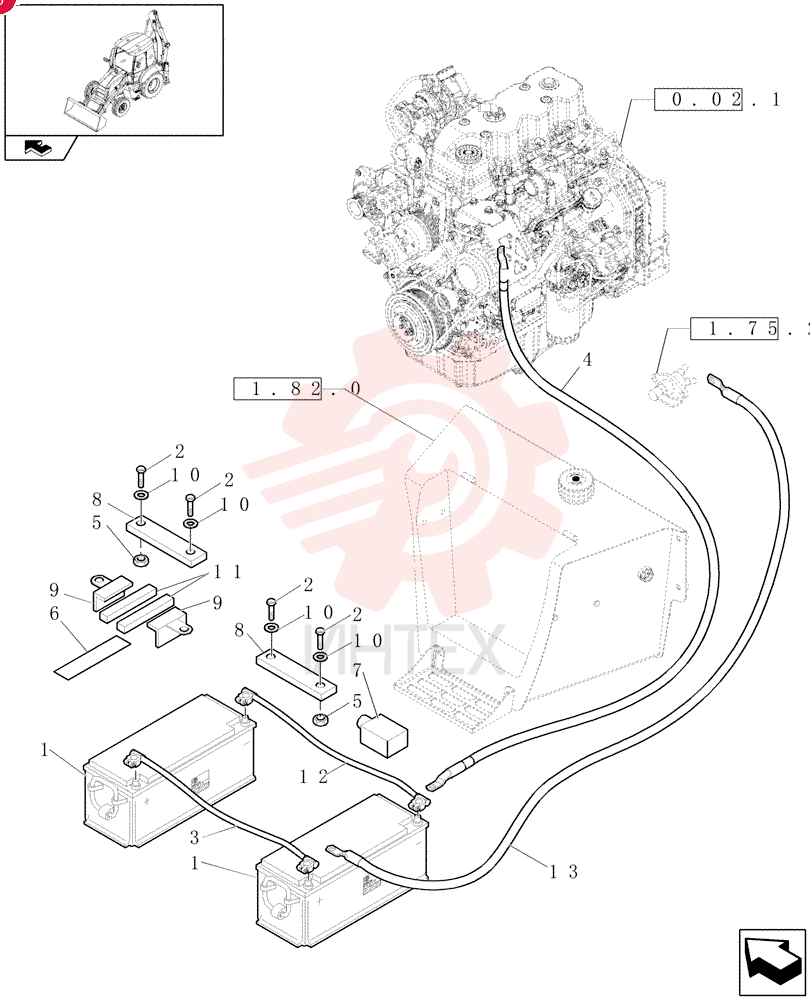

WET BATTERY,BCI 31, 12V, 60AH

WET BATTERY,BCI 31, 12V, 60AH

WET BATTERY,BCI 31, 12V, 60AH

1 85826208

  • 85826208 - WET BATTERY
  • BCI 31
  • 12V
  • 60AH

2 F960DSW

  • F960DSW - WET BATTERY
  • 12V
  • 60AH
  • 600CCA

3 CF960WDS

  • CF960WDS - WET BATTERY

4 412005

  • 412005 - BOLT
  • Hex
  • M10 x 1.5 x 220mm
  • Cl 8.8

5 85827072

  • 85827072 - POS BATTERY CABLE
  • 600mm L

6 87568472

  • 87568472 - CABLE
  • 1440mm L

7 47049041

  • 47049041 - NUT
  • Hex
  • M10 x 1.5
  • Cl 8

8 47049590

  • 47049590 - DECAL

9 85826906

  • 85826906 - GUARD

10 87415781

  • 87415781 - BRACKET

11 47048788

  • 47048788 - ANGLE

12 47048963

  • 47048963 - WASHER
  • 11mm ID x 20mm OD x 2mm Thk
  • Carbon Steel

13 87529531

  • 87529531 - RETAINING PLATE
  • 100mm L x 25mm W x 15mm Thk

14 85827416

  • 85827416 - NEG BATTERY CABLE
  • 600mm L

15 87427925

  • 87427925 - CABLE
  • 1760mm L
