New Holland Construction
/
(B95B) - BACKHOE LOADER - TIER 3 (11/10-)
/

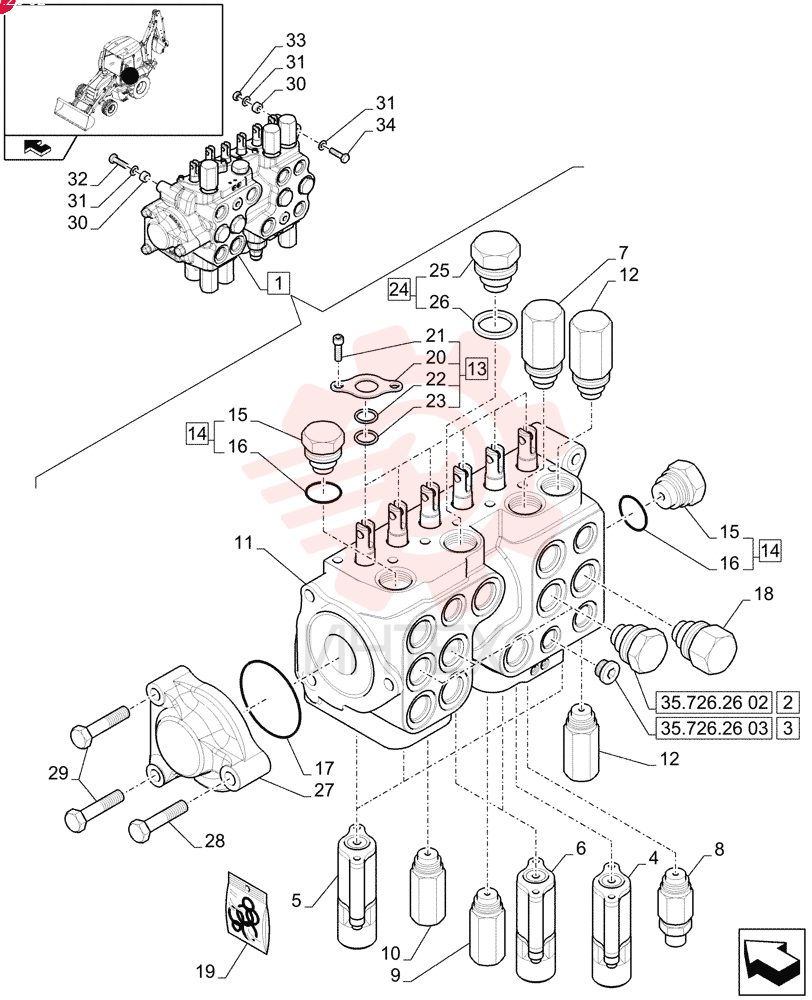

VALVE 47579591

VALVE 47579591

VALVE 47579591

1 47579591

  • 47579591 - VALVE

2 87426238

  • 87426238 - VALVE
  • CHECK

3 87428486

  • 87428486 - VALVE
  • CHECK

4 84296862

  • 84296862 - KIT

5 84296859

  • 84296859 - KIT

6 84308749

  • 84308749 - KIT

7 47520613

  • 47520613 - VALVE PRESSURE RELIE
  • 195 Bar

8 47520614

  • 47520614 - VALVE PRESSURE RELIE
  • 317 Bar

9 47556597

  • 47556597 - VALVE PRESSURE RELIE
  • 241 Bar

10 47537935

  • 47537935 - VALVE PRESSURE RELIE
  • 221 Bar

11 NSS

  • NSS - NOT SOLD SEPARAT

12 47520547

  • 47520547 - VALVE PRESSURE RELIE
  • 205 Bar

13 87541939

  • 87541939 - GASKET KIT

14 81868381

  • 81868381 - CHECK VALVE
  • 1-1/16" - 12

15 NSS

  • NSS - NOT SOLD SEPARAT

16 87455580

  • 87455580 - O-RING KIT

17 87428495

  • 87428495 - O-RING
  • 3.50" ID x 3.76" OD x .139" thk

18 47538478

  • 47538478 - CHECK VALVE

19 47556611

  • 47556611 - SEAL KIT

20 NSS

  • NSS - NOT SOLD SEPARAT

21 87455540

  • 87455540 - HEX SOC SCREW

22 71103058

  • 71103058 - O-RING

23 85999136

  • 85999136 - SEAL
  • 17.6mm ID x 26.84mm OD x 5.42mm Thk

24 83981068

  • 83981068 - STOP PLUG
  • Hex
  • 1/16 - 12 UN

25 NSS

  • NSS - NOT SOLD SEPARAT

26 87308628

  • 87308628 - PLASTIC RING

27 87433030

  • 87433030 - OUTLET

28 87428492

  • 87428492 - SCREW
  • Hex

29 87428491

  • 87428491 - SCREW
  • Hex

30 84170747

  • 84170747 - SPACER
  • 11.5mm ID x 25mm OD x 12.4mm Thk

31 86624176

  • 86624176 - WASHER
  • 11mm ID x 20mm OD x 2mm Thk

32 9706704

  • 9706704 - BOLT
  • Hex
  • M10 x 1.5 x 41.58mm
  • Cl 8.8

33 12577211

  • 12577211 - LOCK NUT
  • M10 x 1.5mm Pitch
  • 12.30mm High
  • Cl 8
  • ZND

34 120075

  • 120075 - BOLT
  • M10 x 1.5 x 106.58mm
  • Cl 8.8
