(B95B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

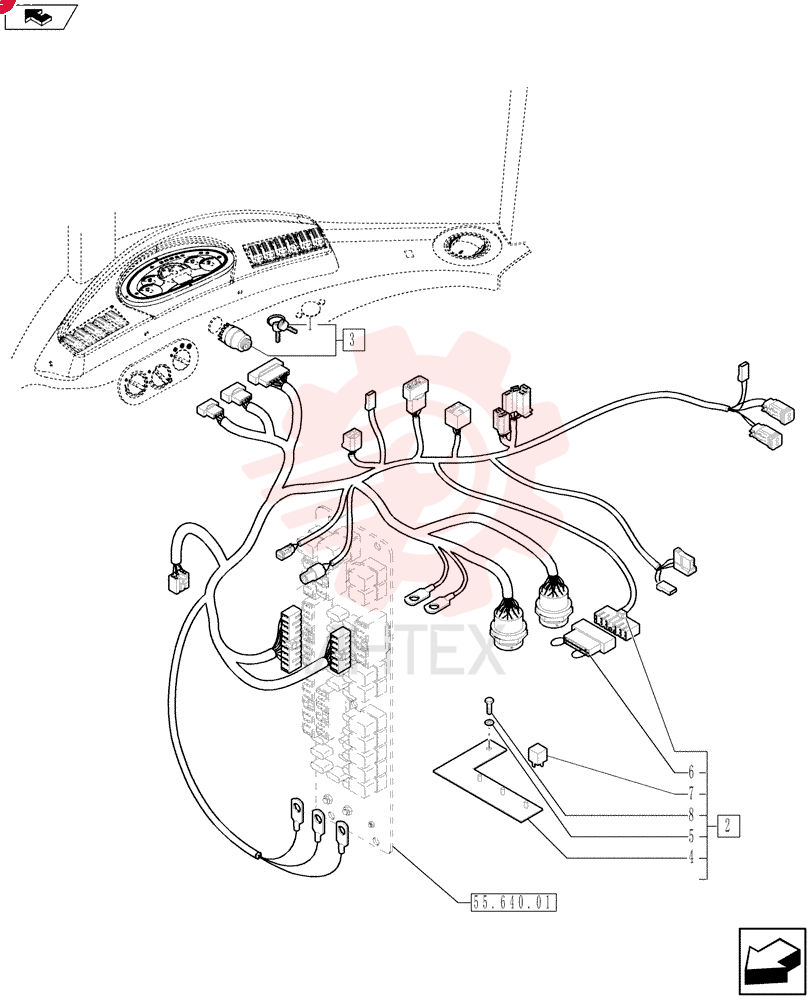

IGNITION KEY 85804675

IGNITION KEY 85804675

IGNITION KEY 85804675

1 85804675

  • 85804675 - IGNITION KEY

2 84468646

  • 84468646 - HARNESS

3 87431469

  • 87431469 - IGNITION SWITCH
  • 7 Pins

4 84234648

  • 84234648 - BRACKET

5 11193274

  • 11193274 - BELLEVILLE WASHER
  • M6 Bolt Size x 15mm OD x 1.2mm Thk

6 85821410

  • 85821410 - BLOCK

7 85825198

  • 85825198 - RELAY
  • Mini
  • W/ Diode

8 10902624

  • 10902624 - SCREW
  • Hex
  • M6 x 25mm
  • Cl 8.8
  • Full Thd
