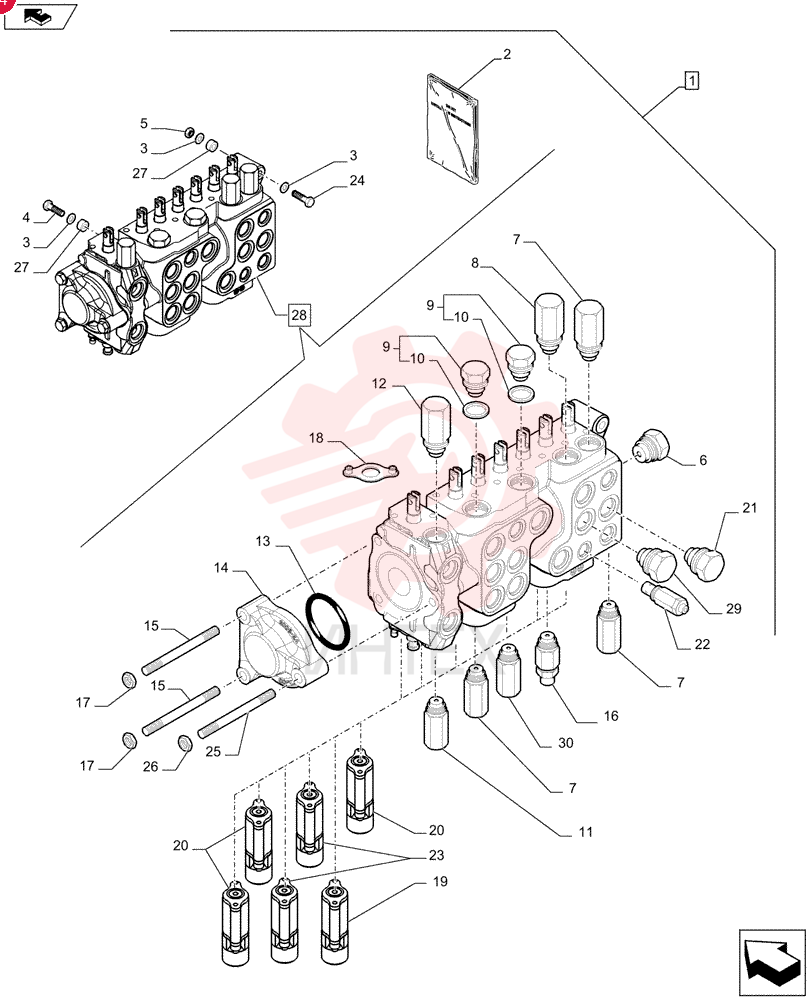

KIT 84523848 (8)
1 84523848
- 84523848 - KIT
2 84524376
- 84524376 - INSTRUCTION
3 86624176
- 86624176 - WASHER
- 11mm ID x 20mm OD x 2mm Thk
4 9706704
- 9706704 - BOLT
- Hex
- M10 x 1.5 x 41.58mm
- Cl 8.8
5 12577211
- 12577211 - LOCK NUT
- M10 x 1.5mm Pitch
- 12.30mm High
- Cl 8
- ZND
6 81868381
- 81868381 - CHECK VALVE
- 1-1/16" - 12
7 47520547
- 47520547 - VALVE PRESSURE RELIE
- 205 Bar
8 47520613
- 47520613 - VALVE PRESSURE RELIE
- 195 Bar
9 83981068
- 83981068 - STOP PLUG
- Hex
- 1/16 - 12 UN
10 87308628
- 87308628 - PLASTIC RING
11 47537935
- 47537935 - VALVE PRESSURE RELIE
- 221 Bar
12 47556599
- 47556599 - VALVE PRESSURE RELIE
- 124 Bar
13 87428495
- 87428495 - O-RING
- 3.50" ID x 3.76" OD x .139" thk
14 87433030
- 87433030 - OUTLET
15 47538074
- 47538074 - TIE-ROD
16 47520614
- 47520614 - VALVE PRESSURE RELIE
- 317 Bar
17 47520609
- 47520609 - NUT
18 87541939
- 87541939 - GASKET KIT
19 84296862
- 84296862 - KIT
20 84296859
- 84296859 - KIT
21 47538478
- 47538478 - CHECK VALVE
22 87428486
- 87428486 - VALVE
- CHECK
23 84308749
- 84308749 - KIT
24 120075
- 120075 - BOLT
- M10 x 1.5 x 106.58mm
- Cl 8.8
25 47538075
- 47538075 - TIE-ROD
26 47520611
- 47520611 - NUT
27 84170747
- 84170747 - SPACER
- 11.5mm ID x 25mm OD x 12.4mm Thk
28 47579592
- 47579592 - VALVE
29 87426238
- 87426238 - VALVE
- CHECK
30 47556597
- 47556597 - VALVE PRESSURE RELIE
- 241 Bar
