New Holland Construction
/
(B95B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

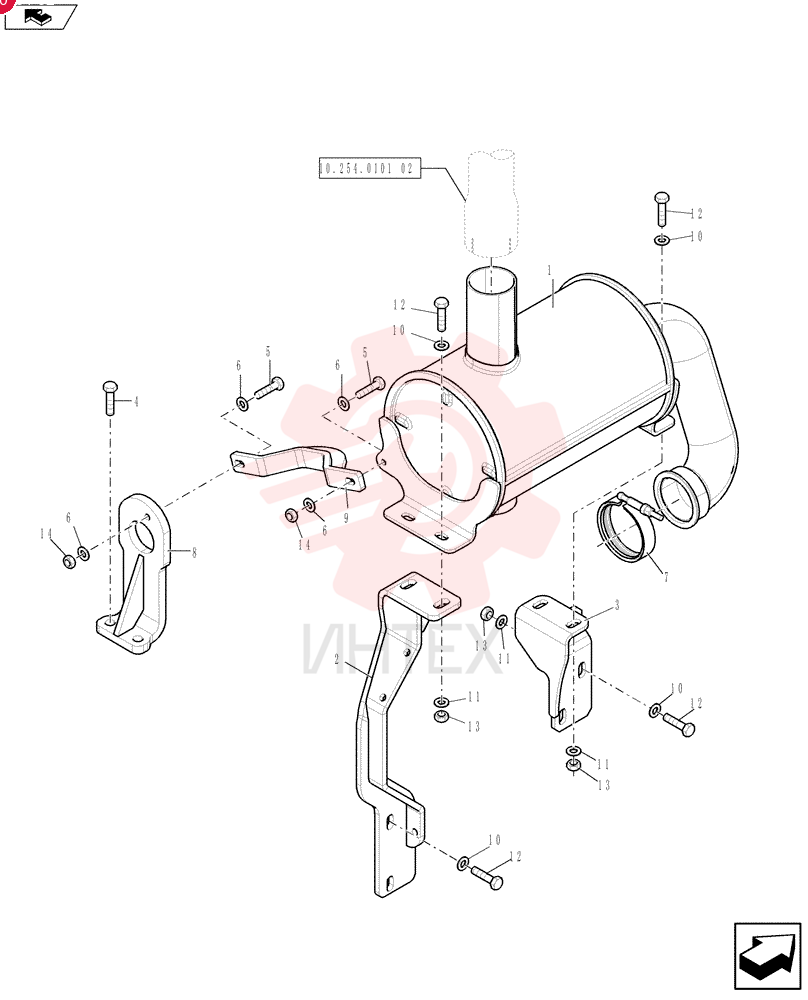

MUFFLER 87474192

MUFFLER 87474192

MUFFLER 87474192

1 87474192

  • 87474192 - MUFFLER

2 87639182

  • 87639182 - BRACKET

3 87658926

  • 87658926 - SUPPORT

4 87030508

  • 87030508 - BOLT
  • Hvy Hex
  • M12 x 30mm
  • Full Thd
  • Cl 10.9

5 412479

  • 412479 - BOLT
  • Hex
  • M8 x 1.25 x 35mm
  • Cl 8.8

6 12646704

  • 12646704 - WASHER
  • 8.15mm ID x 20mm OD x 2mm Thk

7 47048898

  • 47048898 - CLAMP

8 87473026

  • 87473026 - HOOK

9 87473250

  • 87473250 - SUPPORT

10 11198479

  • 11198479 - BELLEVILLE WASHER
  • M10 Bolt Size x 27mm OD

11 140028

  • 140028 - WASHER
  • 10.2mm ID x 18.1mm OD x 2.2mm Thk

12 11106634

  • 11106634 - BOLT
  • Hex
  • M10 x 35mm
  • Cl 10.9
  • Full Thd

13 12577221

  • 12577221 - LOCK NUT
  • M10 x 1.5mm Pitch
  • 12.30mm High
  • Cl 10
  • ZND

14 16100821

  • 16100821 - NUT
  • M8
  • Cl 10
