(B95B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

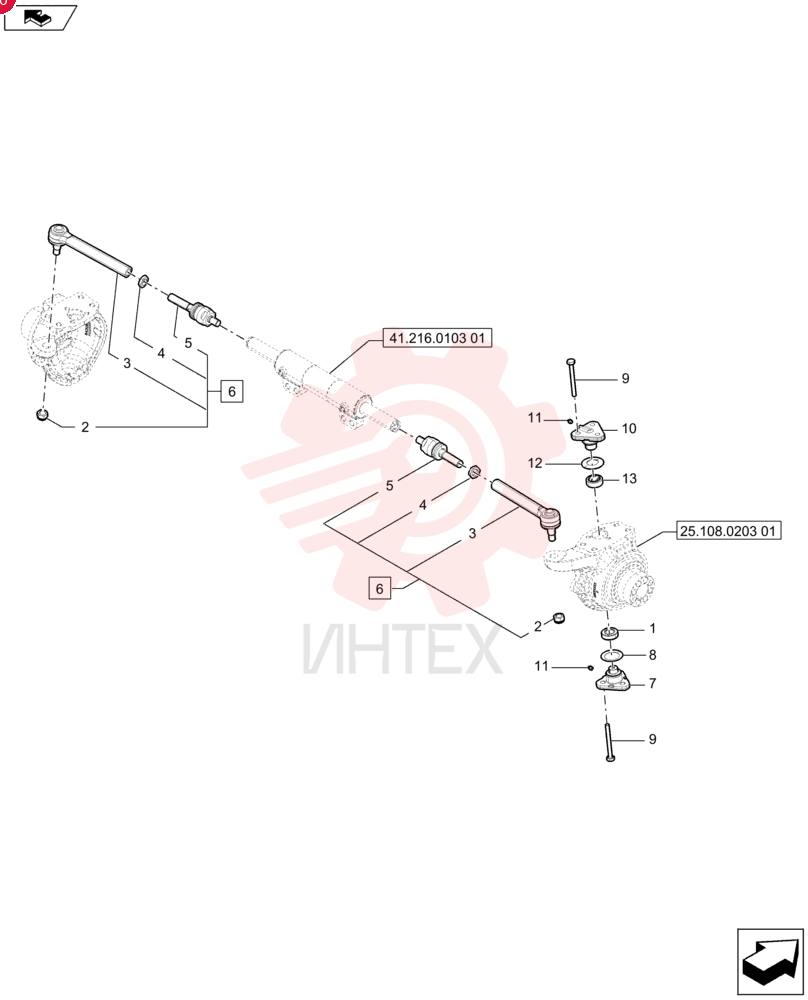

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W 87523063 (3)

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W 87523063 (3)

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W 87523063 (3)

1 87523063

  • 87523063 - SPHERICAL BEARING
  • 28mm ID x 52mm OD x 16mm W

2 87489983

  • 87489983 - NUT
  • M24 x 1.5
  • Cl. 10

3 84276565

  • 84276565 - BALL JOINT
  • 36mm OD x 282mm L

4 87489982

  • 87489982 - NUT
  • M24 x 1.5
  • Cl. 8

5 87489984

  • 87489984 - BALL JOINT
  • 444.1mm L

6 84264410

  • 84264410 - TIE-ROD
  • 397mm L

7 84259753

  • 84259753 - PIN
  • 49.9mm OD x 45mm L

8 84241624

  • 84241624 - SPRING
  • Belleville
  • 47.63mm ID x 69.85mm OD x 0.97mm Thk

9 84273749

  • 84273749 - BOLT
  • M14 x 2 x 35mm

10 84259754

  • 84259754 - PIN
  • 49.9mm OD x 48mm L

11 84351730

  • 84351730 - FITTING
  • M10 x 1

12 84241623

  • 84241623 - SPRING
  • Belleville
  • 36.13mm ID x 70.85mm OD x 2.26mm Thk

13 84241615

  • 84241615 - GROOVED BUSHING
  • 35mm ID x 52mm OD x 20mm L
