New Holland Construction
/
(B95B) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

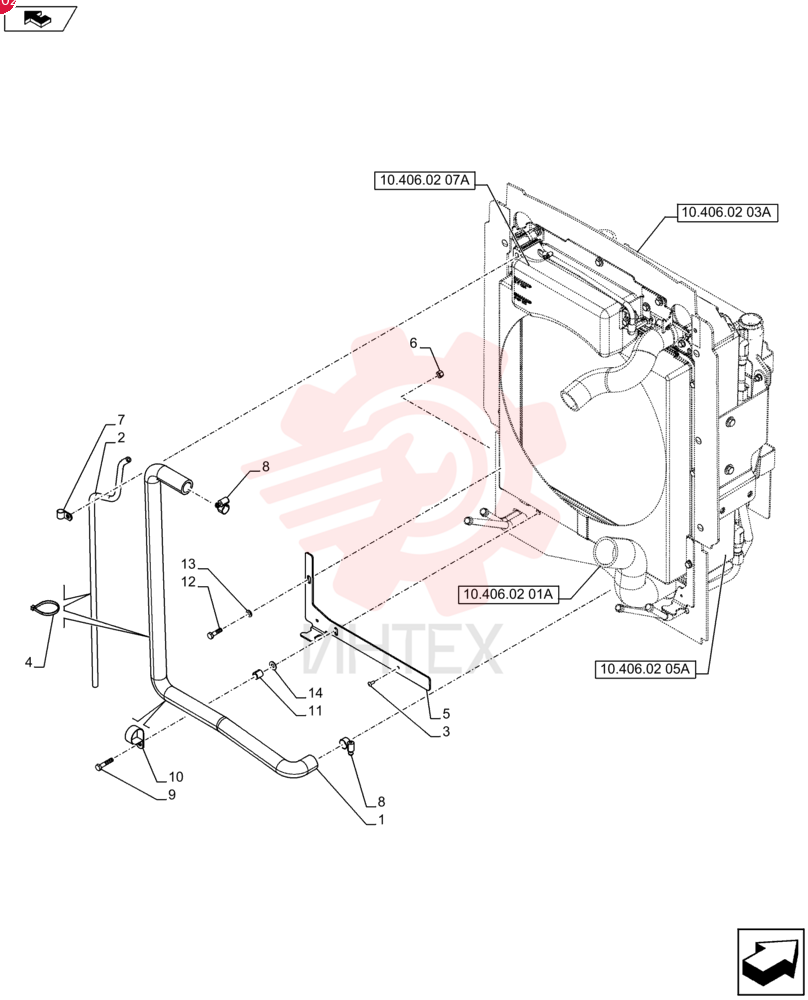

RADIATOR HOSE 47609978 (2)

RADIATOR HOSE 47609978 (2)

RADIATOR HOSE 47609978 (2)

1 47609978

  • 47609978 - RADIATOR HOSE

2 87616934

  • 87616934 - HOSE
  • 6.35mm ID x 750mm L
  • SAE 30R6

3 87301356

  • 87301356 - RIVET
  • Pop
  • 3/16" x .700"

4 86566989

  • 86566989 - CABLE TIE
  • 208mm L

5 87446082

  • 87446082 - RETAINING PLATE
  • 390mm x 195mm x 43mm L

6 412250

  • 412250 - NUT
  • M8 x 1.25
  • Cl 8

7 86625036

  • 86625036 - CLAMP
  • 12.7mm
  • Coat
  • 8.7mm Bolt Hole
  • P Type

8 514920

  • 514920 - HOSE CLAMP
  • 20.6mm - 38.1mm
  • Worm Gear

9 120106

  • 120106 - BOLT
  • M8 x 1.25 x 45.45mm
  • Cl 8.8

10 87024765

  • 87024765 - CLAMP
  • 36.5mm
  • Coat
  • 10.3mm Bolt Hole
  • P Type

11 87418360

  • 87418360 - SPACER
  • 9.8mm ID x 16mm OD x 16mm W

12 43128

  • 43128 - BOLT
  • M8 x 1.25 x 30mm
  • Cl 8.8

13 140016

  • 140016 - WASHER
  • M8 x 16mm OD x 1.6mm Thk

14 86625263

  • 86625263 - WASHER
  • 9mm ID x 20mm OD x 1.6mm Thk
