(B95BTC) - LOADER BACKHOE - TIER 3 NRC (7/12-)
/

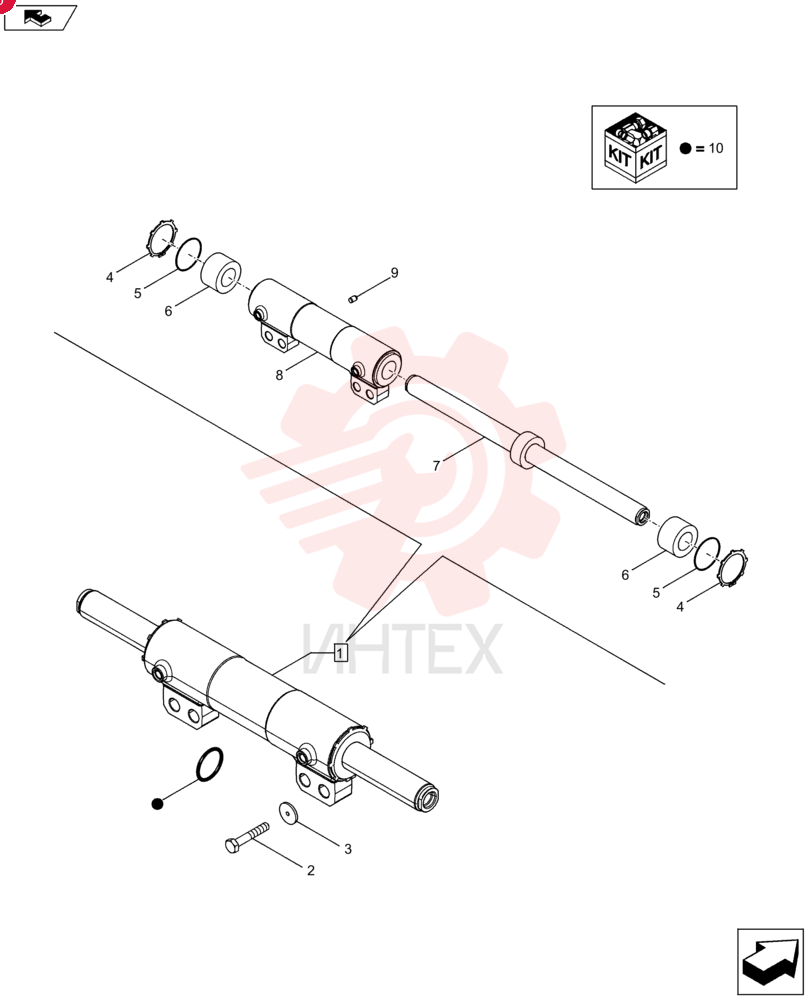

STEERING CYLINDER,Double Acting, 36mm Rod, 63mm Bore, 245mm Stroke

STEERING CYLINDER,Double Acting, 36mm Rod, 63mm Bore, 245mm Stroke

STEERING CYLINDER,Double Acting, 36mm Rod, 63mm Bore, 245mm Stroke

1 84264405

  • 84264405 - STEERING CYLINDER
  • Double Acting
  • 36mm Rod
  • 63mm Bore
  • 245mm Stroke

2 84273744

  • 84273744 - LOCK BOLT
  • Hex
  • Lock
  • M12 x 1.75 x 30mm
  • Cl. 10.9

3 84349418

  • 84349418 - WASHER
  • 19mm ID x 34mm OD x 3mm Thk

4 84276992

  • 84276992 - CIRCLIP
  • 63mm Special

5 84276993

  • 84276993 - SNAP RING
  • 63mm OD x 2mm Thk

6 84276991

  • 84276991 - CYLINDER END CAP

7 84276950

  • 84276950 - ROD

8 NSS

  • NSS - NOT SOLD SEPARAT

9 10839710

  • 10839710 - DOWEL
  • M10 x 15.00mm

10 84330972

  • 84330972 - SEAL KIT
