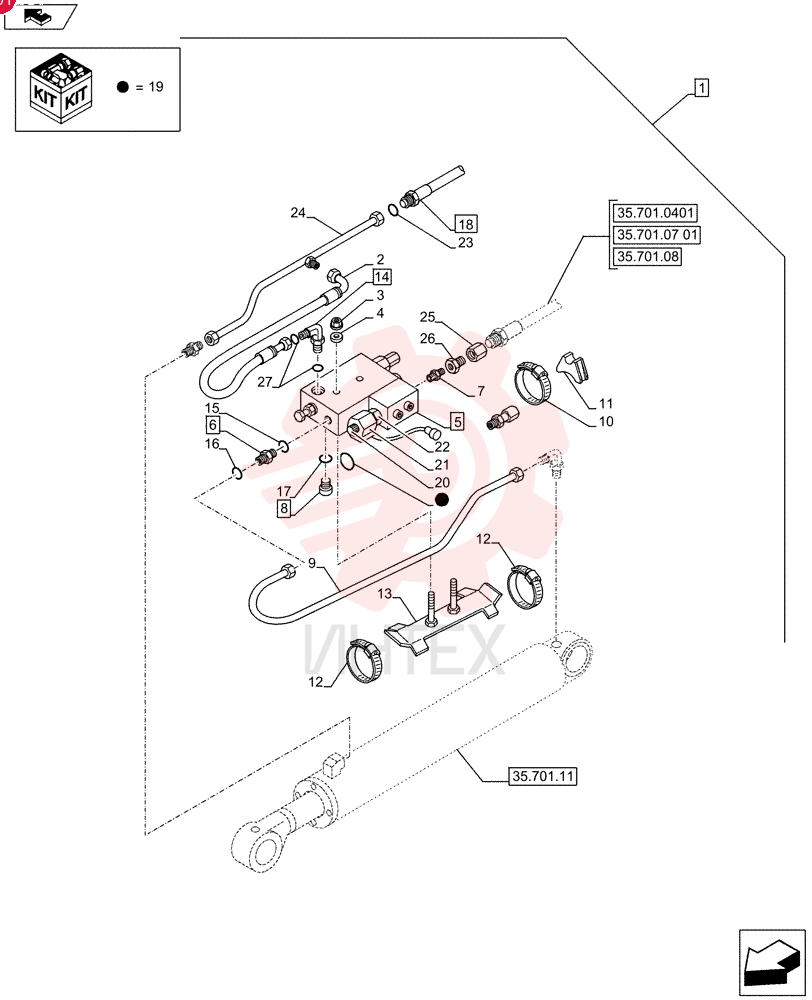

KIT DIA, CRAWLER EXC 718391039 (3)
1 718391039
- 718391039 - KIT DIA
- CRAWLER EXC
2 85815506
- 85815506 - FLEXIBLE HOSE
- 6.35mm ID x 300mm L
3 14048211
- 14048211 - NUT
- M8 x 1.25
- Cl 8
4 11193879
- 11193879 - BELLEVILLE WASHER
- M8 Bolt Size x 16mm OD x 1.4mm Thk
5 85805223
- 85805223 - HYDRAULIC VALVE
6 87351379
- 87351379 - HYD CONNECTOR
7 85805217
- 85805217 - FITTING
- 13/16"-16 ORFS Fem x 3/4"-16 ORB
8 85802805
- 85802805 - PLUG
- 9/16" - 18
9 47390944
- 47390944 - PIPE
10 47392397
- 47392397 - PIPE
11 85803008
- 85803008 - HOSE CLAMP
- 110mm - 130mm
12 83901828
- 83901828 - SPACER
- R8.4mm
- R45mm
13 85802743
- 85802743 - HOSE CLAMP
- 3"1/2 - 4"3/8
14 85805221
- 85805221 - SUPPORT
15 85805220
- 85805220 - ELBOW
- 90 Degree
- 9/16"-18 x 9/16"-18 Adj
- ORFS
16 9992069
- 9992069 - O-RING
- 0.07" Thk x 0.614" ID
- -16
- Cl 6
- 90 Duro
17 128825
- 128825 - O-RING
- 0.087" Thk x 0.644" ID
- -908
- Cl 6
- 90 Duro
18 89825770
- 89825770 - O-RING
- 0.07" Thk x 0.301" ID
- -11
- Cl 6
- 90 Duro
19 47390842
- 47390842 - HOSE
- 12.7mm ID x 533mm L
- SAE 100R16
20 85820839
- 85820839 - KIT
21 9970384
- 9970384 - RING NUT
22 85820283
- 85820283 - COIL
23 85820285
- 85820285 - HYDRAULIC VALVE
24 9992298
- 9992298 - O-RING
- 0.07" Thk x 0.489" ID
- -14
- Cl 6
- 90 Duro
25 47390939
- 47390939 - PIPE
26 85802819
- 85802819 - TUBE NUT
- 1"-14 x 24mm L
27 84989629
- 84989629 - HYD CONNECTOR
- 13/16" - 16 ORB x 1" ORFS
28 9825770
- 9825770 - O-RING
- 0.07" Thk x 0.301" ID
- -11
- Cl 6
- 90 Duro
