(B95C) - BACKHOE LOADER - TIER 4A (3/12-)
/

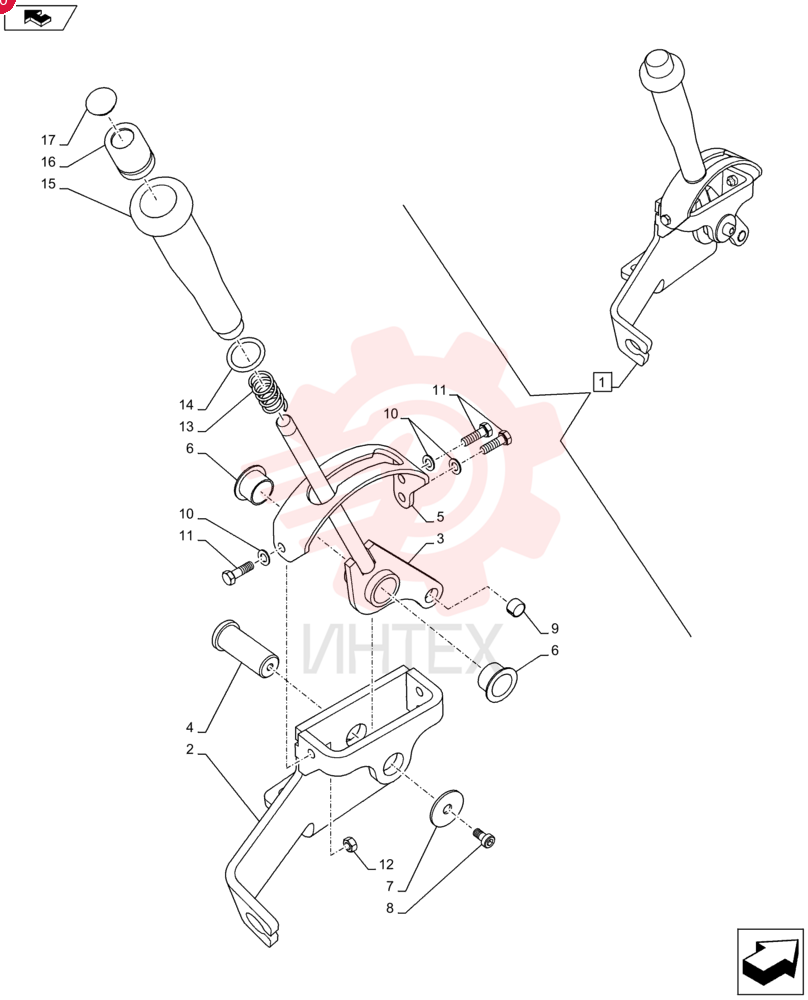

LEVER 47744171 (3)

LEVER 47744171 (3)

LEVER 47744171 (3)

1 47744171

  • 47744171 - LEVER

2 NSS

  • NSS - NOT SOLD SEPARAT

3 47683283

  • 47683283 - LEVER

4 47683263

  • 47683263 - PIN
  • 16mm OD x 40mm L

5 47744170

  • 47744170 - BRACKET

6 47693222

  • 47693222 - BUSHING
  • 16mm ID x 24mm OD x 12mm L

7 86624183

  • 86624183 - WASHER
  • 6.6mm ID x 25mm OD x 1.6mm Thk

8 63582

  • 63582 - HEX SOC SCREW
  • M6 x 12mm
  • Cl 8.8

9 47693234

  • 47693234 - BUSHING
  • 8mm ID x 10mm OD x 6mm L

10 11181574

  • 11181574 - BELLEVILLE WASHER
  • M5 Bolt Size x 11mm OD x 0.9mm Thk

11 86050276

  • 86050276 - BOLT
  • Hex
  • M5 x 16mm
  • Cl 8.8
  • Full Thd

12 15896414

  • 15896414 - NUT
  • M5
  • Cl 8

13 85821201

  • 85821201 - SPRING

14 87324529

  • 87324529 - O-RING
  • 15.54mm ID

15 87324512

  • 87324512 - HANDLE

16 85821200

  • 85821200 - PUSH BUTTON

17 87324525

  • 87324525 - PLUG
  • Red
