New Holland Construction
/

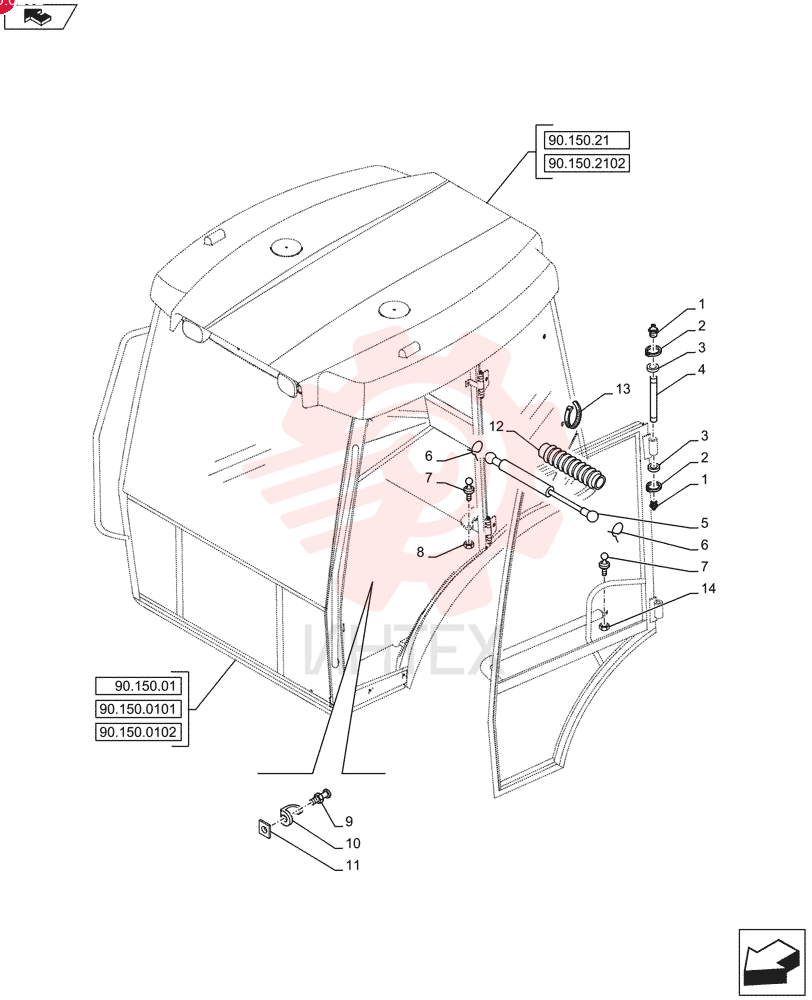

(B95CTC) - BACKHOE LOADER - TOOL CARRIER - TIER 4A (3/12-)
/
LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

1 13406911

  • 13406911 - LUBE NIPPLE
  • Straight
  • 1/4"-28 x 0.54"

2 11088076

  • 11088076 - CIRCLIP
  • M10

3 83964146

  • 83964146 - WASHER
  • 10mm ID x 18mm OD x 1mm Thk

4 87304810

  • 87304810 - PIN
  • 9mm OD x 145.5mm L

5 5183854

  • 5183854 - GAS STRUT

6 81869714

  • 81869714 - CLIP
  • 11mm ID

7 82000409

  • 82000409 - BALL STUD
  • M8 x 1.25

8 16104511

  • 16104511 - NUT
  • M8 x 1.25
  • Cl 8.8

9 83994395

  • 83994395 - DOWEL
  • M12 x 1

10 83994372

  • 83994372 - BRACKET

11 83994378

  • 83994378 - NUT
  • M12 x 1

12 81867742

  • 81867742 - BOOT

13 5112712

  • 5112712 - COLLAR
  • M4.8 x 283

14 86629542

  • 86629542 - NUT
  • M8 x 1.25
  • Cl 8.8
