(B95CTC) - BACKHOE LOADER - TOOL CARRIER - TIER 4A (3/12-)
/

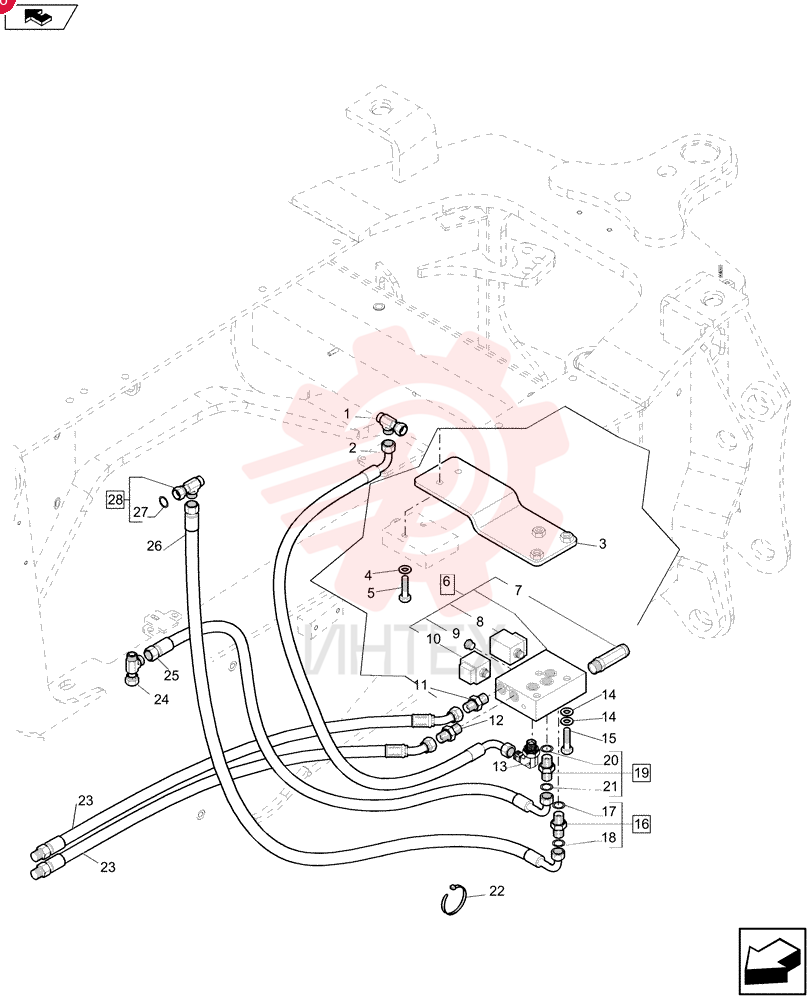

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

TEE,13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

1 86514261

  • 86514261 - TEE
  • 13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

2 87361499

  • 87361499 - FLEXIBLE HOSE
  • 9.5mm ID x 495mm L

3 87361538

  • 87361538 - PLATE

4 83990583

  • 83990583 - LOCK WASHER
  • M8 x 14.8mm OD x 2.1mm Thk

5 43128

  • 43128 - BOLT
  • M8 x 1.25 x 30mm
  • Cl 8.8

6 87435909

  • 87435909 - SOLENOID VALVE

7 84200896

  • 84200896 - VALVE PRESSURE RELIE

8 87438025

  • 87438025 - SOLENOID VALVE

9 87438029

  • 87438029 - VALVE
  • CHECK

10 87438021

  • 87438021 - SOLENOID VALVE

11 87365724

  • 87365724 - HYD CONNECTOR
  • 9/16"-18 ORFS x 1/2"-20 ORB

12 87681202

  • 87681202 - HYD CONNECTOR
  • 9/16" - 18 ORFS x 7/16" - 20 ORB

13 87016877

  • 87016877 - ELBOW
  • 90 Degree
  • 13/16"-16 x 9/16"-18
  • Adj
  • ORFS

14 140028

  • 140028 - WASHER
  • 10.2mm ID x 18.1mm OD x 2.2mm Thk

15 120070

  • 120070 - BOLT
  • Hex
  • M10 x 1.5 x 60mm
  • Cl 8.8

16 277961A1

  • 277961A1 - VALVE

17 237-6006

  • 237-6006 - O-RING
  • 0.078" Thk x 0.468" ID
  • -906
  • Cl 6
  • 90 Duro

18 238-6012

  • 238-6012 - O-RING
  • 0.07" Thk x 0.364" ID
  • -12
  • Cl 6
  • 90 Duro

19 9993143

  • 9993143 - HYD CONNECTOR
  • 11/16" - 16 ORFS x 9/16" - 18 ORB

20 9617873

  • 9617873 - O-RING
  • 0.078" Thk x 0.468" ID
  • -906
  • Cl 6
  • 90 Duro

21 9993141

  • 9993141 - O-RING
  • 0.07" Thk x 0.364" ID
  • -12
  • Cl 6
  • 90 Duro

22 14560187

  • 14560187 - COLLAR
  • 199mm L

23 87361471

  • 87361471 - FLEXIBLE HOSE
  • 6.4mm ID x 2770mm L

24 86624132

  • 86624132 - TEE
  • 13/16" - 16 JIC x 13/16" - 16 ORFS x 13/16" - 16 ORFS

25 87361484

  • 87361484 - FLEXIBLE HOSE
  • 9.5mm ID x 950mm L

26 87361496

  • 87361496 - FLEXIBLE HOSE
  • 6.4mm ID x 975mm L

27 9993141

  • 9993141 - O-RING
  • 0.07" Thk x 0.364" ID
  • -12
  • Cl 6
  • 90 Duro

28 84989848

  • 84989848 - TEE
  • 11/16" - 16 ORFS x 11/16" - 16 ORFS x 11/16" - 16 JIC
