(B95CTC) - BACKHOE LOADER - TOOL CARRIER - TIER 4B (2/15-)
/

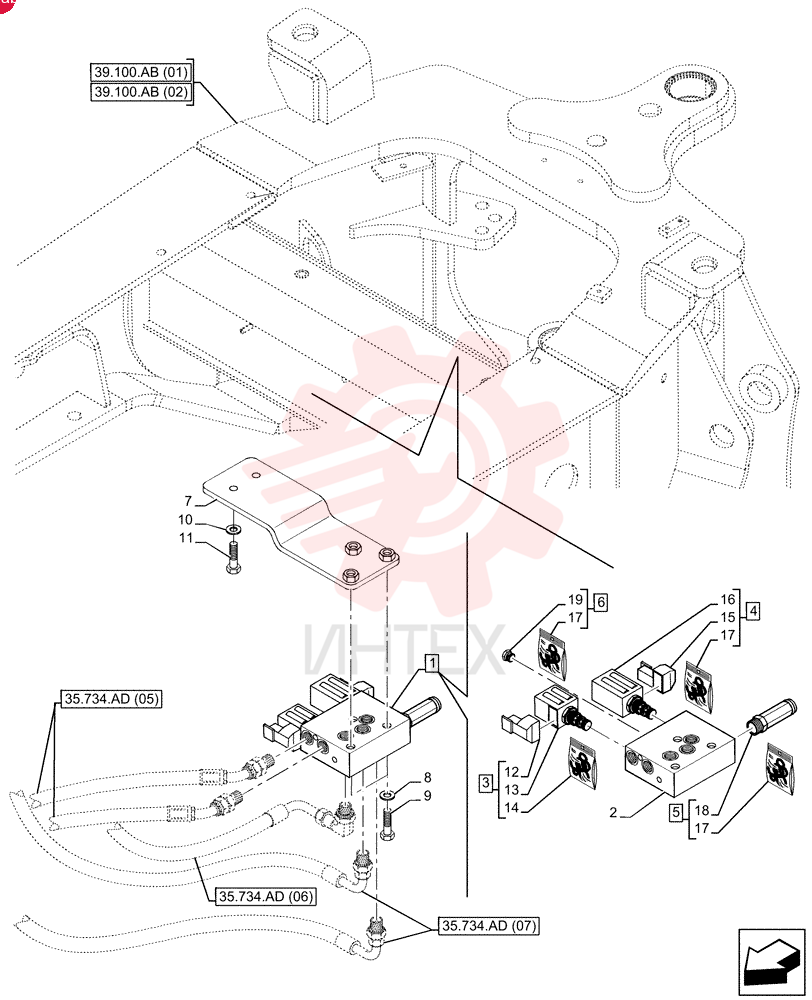

SOLENOID VALVE 87435909 (1)

SOLENOID VALVE 87435909 (1)

SOLENOID VALVE 87435909 (1)

1 87435909

  • 87435909 - SOLENOID VALVE

2 NSS

  • NSS - NOT SOLD SEPARAT

3 87438021

  • 87438021 - SOLENOID VALVE

4 87438025

  • 87438025 - SOLENOID VALVE

5 84200896

  • 84200896 - VALVE PRESSURE RELIE

6 87438029

  • 87438029 - VALVE
  • CHECK

7 87361538

  • 87361538 - PLATE

8 140028

  • 140028 - WASHER
  • 10.2mm ID x 18.1mm OD x 2.2mm Thk

9 120070

  • 120070 - BOLT
  • Hex
  • M10 x 1.5 x 60mm
  • Cl 8.8

10 83990583

  • 83990583 - LOCK WASHER
  • M8 x 14.8mm OD x 2.1mm Thk

11 43128

  • 43128 - BOLT
  • M8 x 1.25 x 30mm
  • Cl 8.8

12 87438022

  • 87438022 - HYDRAULIC VALVE

13 87438023

  • 87438023 - COIL

14 87438024

  • 87438024 - SEAL KIT

15 87438026

  • 87438026 - HYDRAULIC VALVE

16 87438027

  • 87438027 - COIL

17 87438028

  • 87438028 - SEAL KIT

18 NSS

  • NSS - NOT SOLD SEPARAT

19 NSS

  • NSS - NOT SOLD SEPARAT
