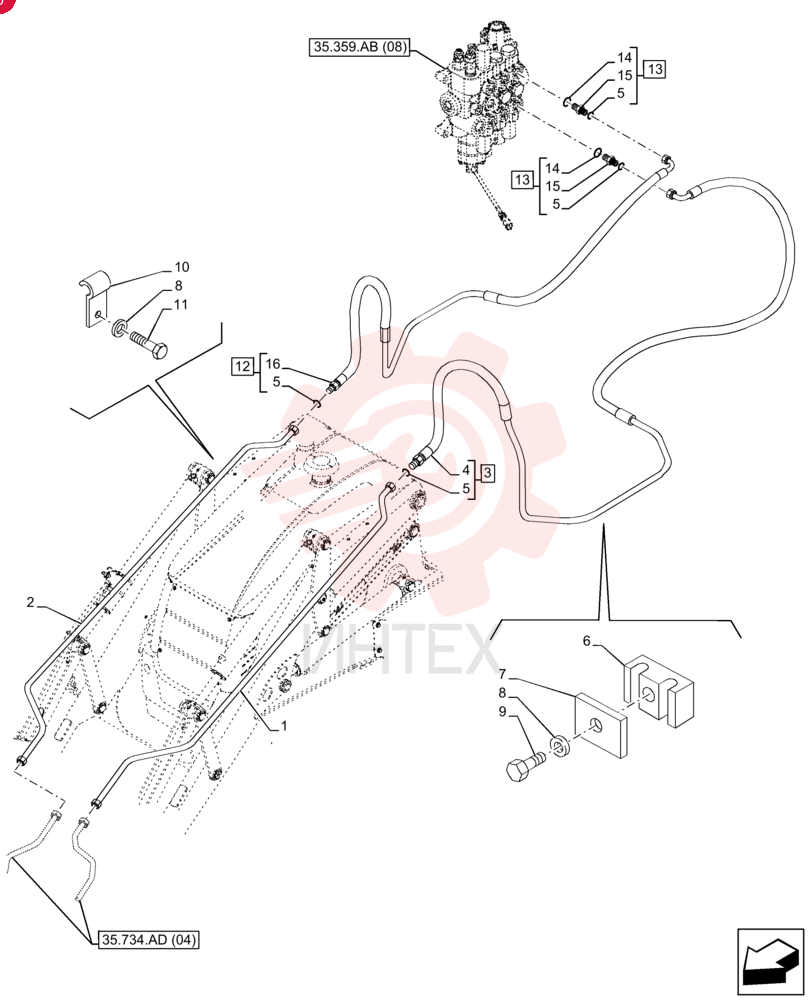

TUBE,11.16 mm ID x 1927.04, 270.5 mm L 87536582 (1)
1 87536582
- 87536582 - TUBE
- 11.16 mm ID x 1927.04
- 270.5 mm L
2 87536583
- 87536583 - TUBE
- 1913.08
- 261.18 mm L
3 85805862
- 85805862 - HYD TUBE
4 NSS
- NSS - NOT SOLD SEPARAT
5 9992298
- 9992298 - O-RING
- 0.07" Thk x 0.489" ID
- -14
- Cl 6
- 90 Duro
6 85805193
- 85805193 - CLAMP
- 12mm ID
7 85805195
- 85805195 - PLATE
8 11193979
- 11193979 - BELLEVILLE WASHER
- M8 Bolt Size x 22mm OD x 1.5mm Thk
9 43130
- 43130 - BOLT
- Hex
- M8 x 1.25 x 50mm
- Cl 8.8
10 87536183
- 87536183 - PIPE CLAMP
11 43128
- 43128 - BOLT
- M8 x 1.25 x 30mm
- Cl 8.8
12 84172662
- 84172662 - RIGID TUBE
13 83963376
- 83963376 - FITTING
- 13/16"-16 ORFS x 7/8"-14 ORB
14 167269
- 167269 - O-RING
- 0.097" Thk x 0.755" ID
- -910
- Cl 6
- 90 Duro
15 NSS
- NSS - NOT SOLD SEPARAT
16 NSS
- NSS - NOT SOLD SEPARAT
