New Holland Construction
/
(B95TC) - NA BACKHOE LOADER (1/06-)
/

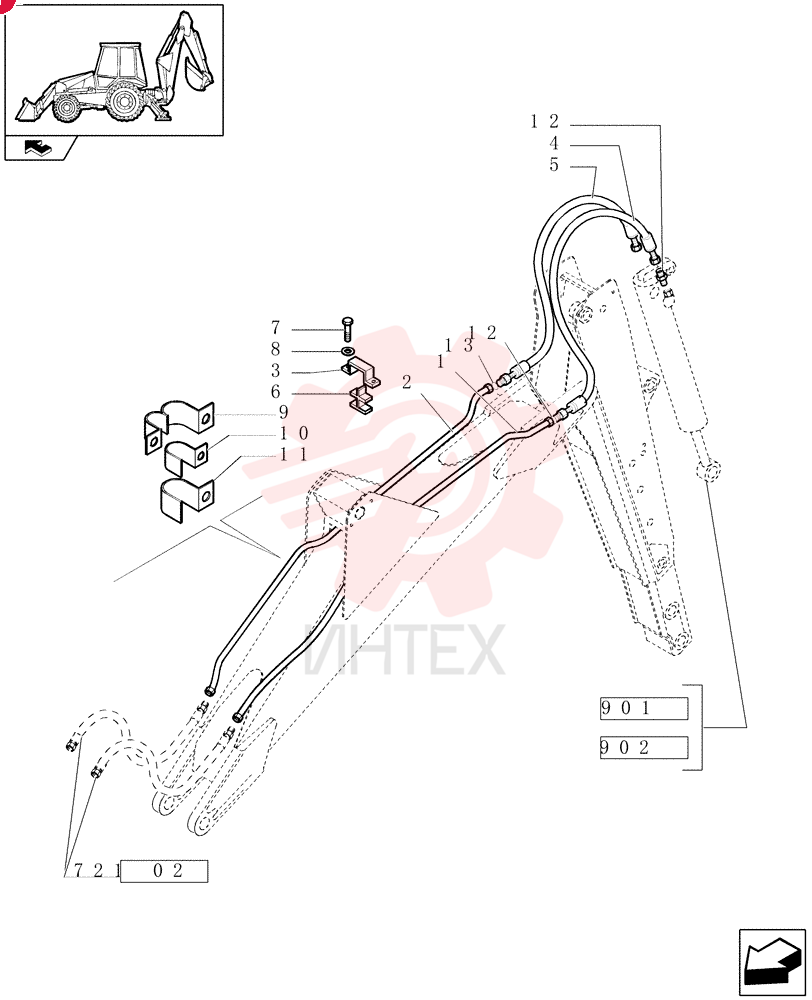

TUBE 85815642 (2)

TUBE 85815642 (2)

TUBE 85815642 (2)

1 85815642

  • 85815642 - TUBE

2 85815640

  • 85815640 - TUBE

3 85803402

  • 85803402 - PLATE

4 87619506

  • 87619506 - FLEXIBLE HOSE
  • 12.7mm ID x 1165mm L

5 85817108

  • 85817108 - HYDRAULIC HOSE
  • 9.5mm ID x 1130mm L

6 85802532

  • 85802532 - HOSE CLIP

7 16043621

  • 16043621 - BOLT
  • Hex
  • M8 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

8 11193879

  • 11193879 - BELLEVILLE WASHER
  • M8 Bolt Size x 16mm OD x 1.4mm Thk

9 85802529

  • 85802529 - CLAMP
  • 12.5-16.5mm ID

10 85802527

  • 85802527 - CLAMP
  • 12.5mm ID

11 85802528

  • 85802528 - CLAMP
  • 16.5mm ID

12 83962539

  • 83962539 - HYD CONNECTOR
  • 1" - 14 ORFS x 1-1/16 - 12 ORB

13 9992069

  • 9992069 - O-RING
  • 0.07" Thk x 0.614" ID
  • -16
  • Cl 6
  • 90 Duro

14 9992298

  • 9992298 - O-RING
  • 0.07" Thk x 0.489" ID
  • -14
  • Cl 6
  • 90 Duro
