New Holland Construction
/
(B95TC) - NA BACKHOE LOADER (1/06-)
/

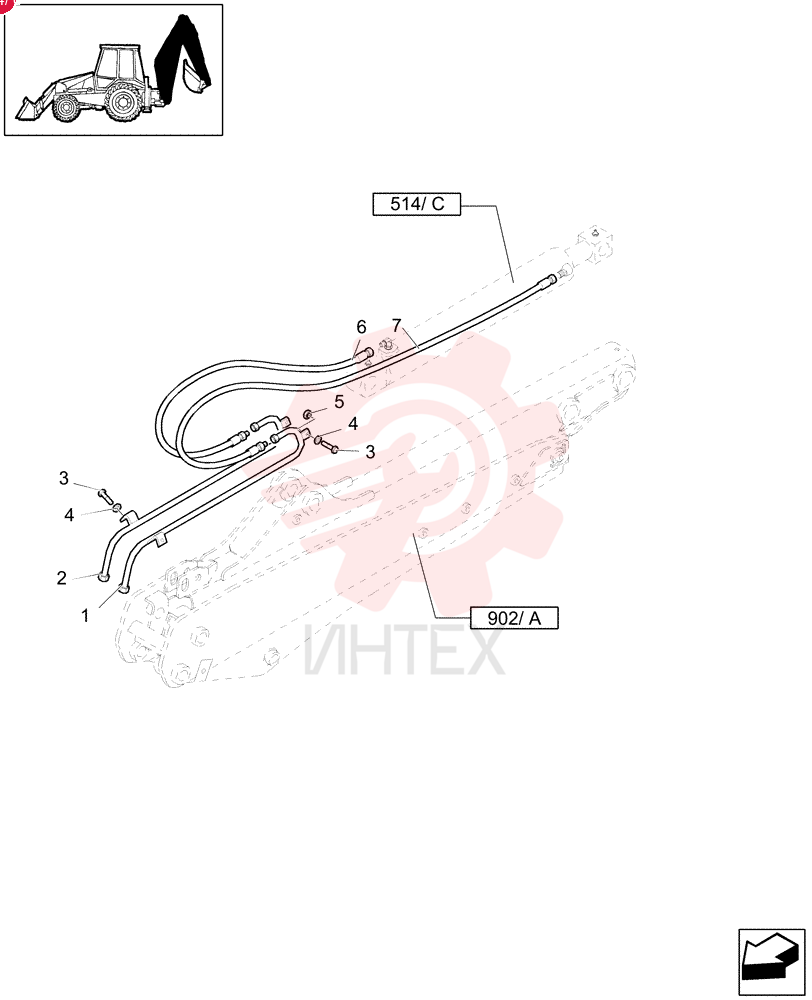

TUBE 85815679

TUBE 85815679

TUBE 85815679

1 85815679

  • 85815679 - TUBE

2 85815677

  • 85815677 - TUBE

3 16043621

  • 16043621 - BOLT
  • Hex
  • M8 x 1.25 x 25mm
  • Cl 8.8
  • Full Thd

4 11193979

  • 11193979 - BELLEVILLE WASHER
  • M8 Bolt Size x 22mm OD x 1.5mm Thk

5 14048211

  • 14048211 - NUT
  • M8 x 1.25
  • Cl 8

6 87636395

  • 87636395 - FLEXIBLE HOSE
  • 15.9mm ID x 1100mm L

7 87636396

  • 87636396 - FLEXIBLE HOSE
  • 12.7mm ID x 1970mm L
