(C238) - COMPACT TRACK LOADER (4/11-)
/

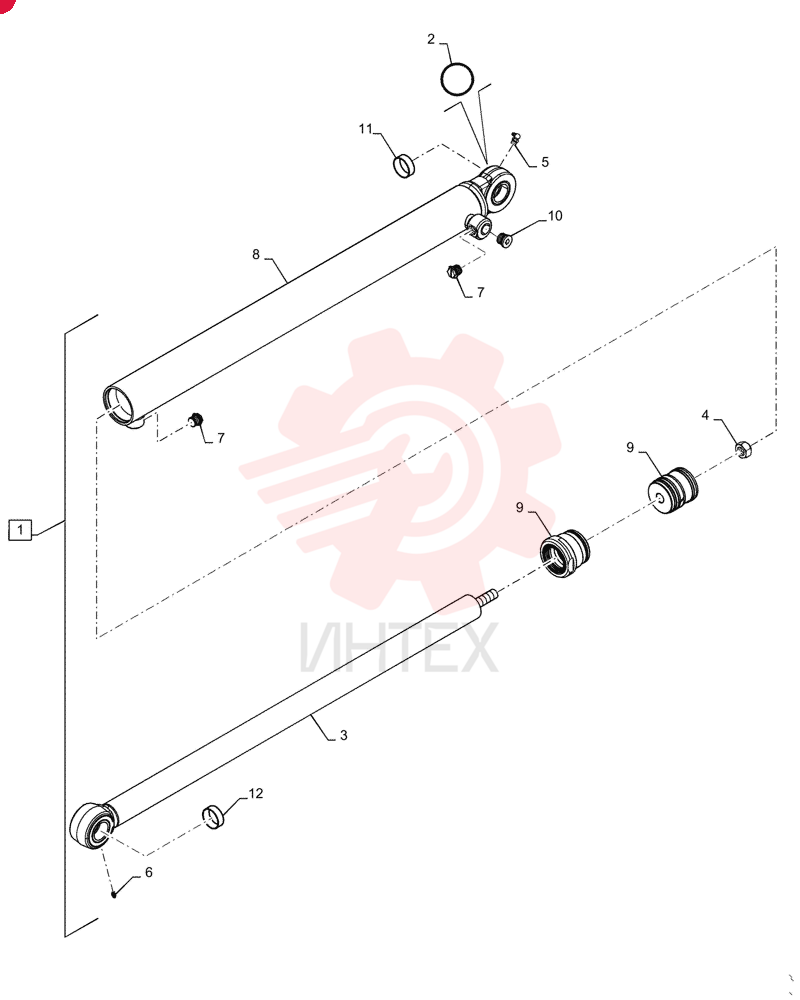

CYLINDER,Double Acting, 50.8mm Rod, 847.9mm Stroke 84527650 (2)

CYLINDER,Double Acting, 50.8mm Rod, 847.9mm Stroke 84527650 (2)

CYLINDER,Double Acting, 50.8mm Rod, 847.9mm Stroke 84527650 (2)

1 84527650

  • 84527650 - CYLINDER
  • Double Acting
  • 50.8mm Rod
  • 847.9mm Stroke
  • Hydraulic
  • Lift
  • Incl 3 - 10
  • Years: -30-JUL-13

2 47416042

  • 47416042 - HYDRAULIC CYLINDER
  • Hydraulic
  • Lift
  • Incl 3 - 10
  • Start Year: 31-JUL-13

3 47416042R

  • 47416042R - REMAN-HYD CYLINDER
  • Reman

4 47416042C

  • 47416042C - CORE-HYD CYLINDER
  • Core Return

5 84530079

  • 84530079 - SERVICE KIT
  • Services 1
  • Years: -30-JUL-13

6 47416073

  • 47416073 - KIT
  • Services 1
  • Start Year: 31-JUL-13

7 84527762

  • 84527762 - PISTON ROD
  • 50.81mm OD x 1079.2mm L
  • 50.81mm OD x 1079.2mm L
  • Incl 11
  • Years: -30-JUL-13

8 47416059

  • 47416059 - ROD
  • 50.81mm OD x 1114.9mm L
  • Incl 11
  • Start Year: 31-JUL-13

9 280724

  • 280724 - LOCK NUT
  • 3/4" - 16

10 86977989

  • 86977989 - LUBE NIPPLE
  • 90 Degree
  • 1/8" - 27 NPT
  • Leakproof

11 87414

  • 87414 - LUBE NIPPLE
  • 1/4" - 28

12 86625120

  • 86625120 - PLUG
  • Sltd Hd
  • 3/4"-16
  • Yellow
  • Plastic
  • Incl NSS O-Ring
  • Incl 13

13 NSS

  • NSS - NOT SOLD SEPARAT
  • Tube Assembly
  • Incl 12

14 NSS

  • NSS - NOT SOLD SEPARAT
  • Piston / Gland Package

15 9625178

  • 9625178 - PLUG
  • 9/16" - 18 ORB
  • Incl 14

16 84298801

  • 84298801 - BUSHING
  • 38.35mm ID x 47.62 OD x 22.8mm L
  • Rod Eye Bushing

17 84241617

  • 84241617 - BUSHING
  • 38.35mm ID x 47.62 OD x 18.8mm L
  • Tube Eye Bushing

18 NSS

  • NSS - NOT SOLD SEPARAT
  • Oring
  • Included With 7

19 9617873

  • 9617873 - O-RING
  • 0.078" Thk x 0.468" ID
  • -906
  • Cl 6
  • 90 Duro
  • Included With 10
