New Holland Construction
/
(C238) - COMPACT TRACK LOADER (4/11-)
/

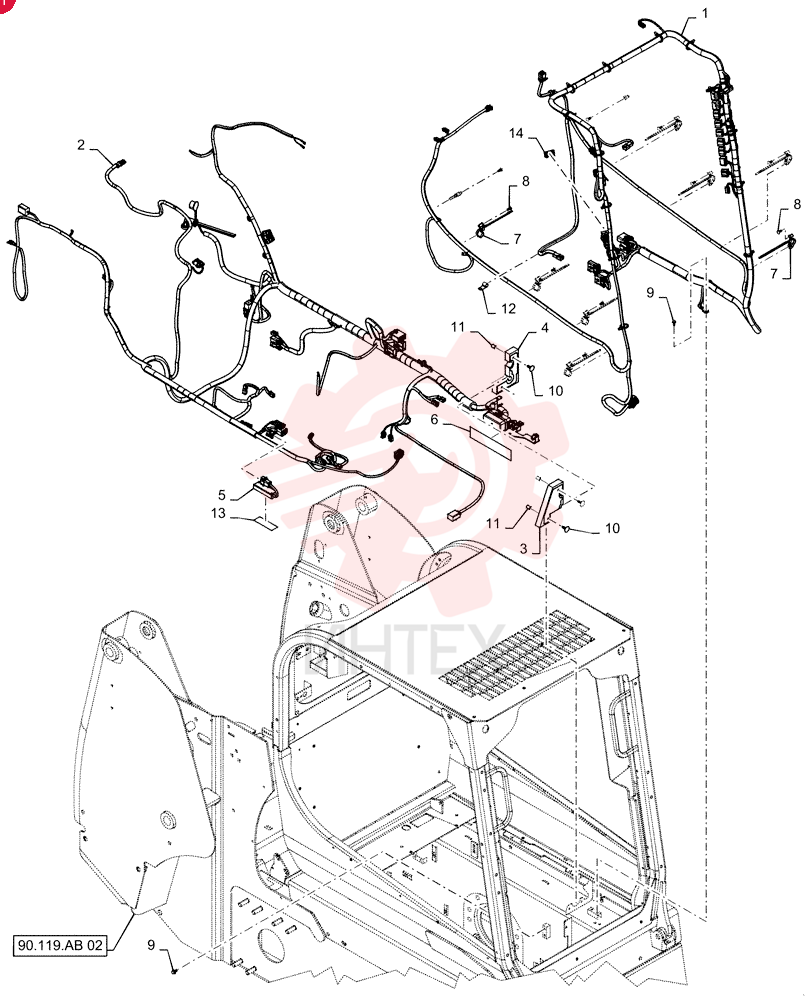

WIRE HARNESS 84423647

WIRE HARNESS 84423647

WIRE HARNESS 84423647

1 84423647

  • 84423647 - WIRE HARNESS
  • Cab
  • Mechanical Basic
  • Years: -14-MAR-12

2 84553269

  • 84553269 - WIRE HARNESS
  • Cab
  • Mechanical Basic
  • Years: 15-MAR-12-14-NOV-12

3 47377757

  • 47377757 - WIRE HARNESS
  • Cab
  • Mechanical Basic
  • Start Year: 15-NOV-12

4 84352397

  • 84352397 - WIRE HARNESS
  • Chassis
  • Mechanical Controls
  • Years: -28-FEB-12

5 84544791

  • 84544791 - WIRE HARNESS
  • Chassis
  • Mechanical Controls
  • Years: 29-FEB-12-15-APR-12

6 84605452

  • 84605452 - WIRE HARNESS
  • Chassis
  • Mechanical Controls
  • Years: 16-APR-12-30-APR-13

7 47377778

  • 47377778 - WIRE HARNESS
  • Chassis
  • Mechanical Controls
  • Years: 01-MAY-13-09-SEP-13

8 47523494

  • 47523494 - WIRE HARNESS
  • Chassis
  • Mechanical Controls
  • Start Year: 10-SEP-13

9 84309934

  • 84309934 - SEAL
  • Assy
  • LH
  • Years: -18-FEB-13

10 47535366

  • 47535366 - SEAL
  • Assy
  • LH
  • Start Year: 19-FEB-13

11 84309935

  • 84309935 - SEAL
  • Assy
  • LH
  • Years: -18-FEB-13

12 47535368

  • 47535368 - SEAL
  • Assy
  • LH
  • Start Year: 19-FEB-13

13 84131374

  • 84131374 - MODULE
  • Driver
  • PWM Prop Aux
  • Years: -14-NOV-12

14 47369995

  • 47369995 - PROXIMITY SWITCH
  • Driver
  • PWM Prop Aux
  • Years: 15-NOV-12-17-APR-13

15 84131374

  • 84131374 - MODULE
  • Driver
  • PWM Prop Aux
  • Start Year: 18-APR-13

16 84380451

  • 84380451 - DECAL
  • Fuse Box Layout Mech

17 84420746

  • 84420746 - CABLE TIE
  • 403.9mm L
  • Tie

18 84420768

  • 84420768 - FASTENER
  • Pine Tree
  • 5/8" x 20.01mm

19 86511841

  • 86511841 - BOLT
  • Flng
  • M8 x 1.25 x 16mm
  • Full Thd
  • Cl 8.8

20 86620930

  • 86620930 - FASTENER
  • Push-In
  • 1.10" L
  • Nylon

21 87035448

  • 87035448 - SPACER
  • 8.48mm ID x 12.7mm OD x 12.7mm L

22 87313351

  • 87313351 - CLIP
  • 25.4mm
  • Coat
  • 8.7mm Bolt Hole
  • J Type

23 NSS

  • NSS - NOT SOLD SEPARAT
  • Double Sided Tape
  • 25.4mm W x 3mm Thk x 150mm L

24 126844A1

  • 126844A1 - PLUG
  • 1.427” x .62”
  • Plastic
  • Switch Hole
